When selecting a 6000L bitumen sprayer for road construction and maintenance, the choice of chassis is just as critical as the spraying system itself. In China, three major truck manufacturers — Dongfeng, Shacman (Shaanxi Automobile Group), and FAW (First Automobile Works) — dominate the heavy-duty chassis market for asphalt distribution equipment. Each brand brings unique strengths in terms of engine performance, chassis durability, after-sales service, and overall cost-effectiveness.
In this article, we provide a detailed comparison of the 6000L bitumen sprayer mounted on these three chassis platforms, helping road construction contractors, project managers, and machinery buyers make an informed purchasing decision.
1. Overview of the 6000L Bitumen Sprayer
A 6000-liter (6 m³) bitumen sprayer, also known as an asphalt distributor truck, is a specialized piece of road construction machinery designed to transport and spray liquid asphalt — including hot asphalt, emulsified asphalt, modified asphalt, and residual oil — onto road surfaces. It is widely used for prime coat, tack coat, waterproof layer, and chip seal applications in highway, municipal road, and airport pavement construction.
Key components of a standard 6000L bitumen sprayer include:
- Asphalt tank with thermal insulation (typically 50mm rock wool + stainless steel cladding)
- High-viscosity asphalt pump (QGB680, 680L/min)
- Intelligent PLC control system (Siemens or equivalent)
- Italian Riello burner with thermal oil circulation heating
- 36–48 individually controlled pneumatic or intelligent spray nozzles
- Hydraulic system with proportional valve control
- Diesel cleaning and high-pressure air purge system

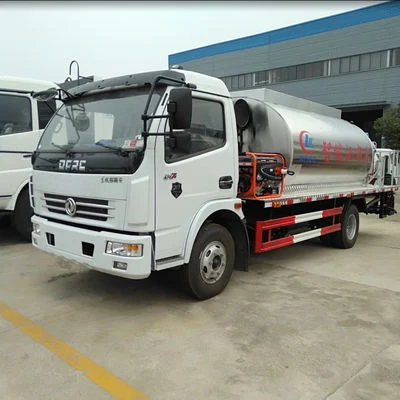

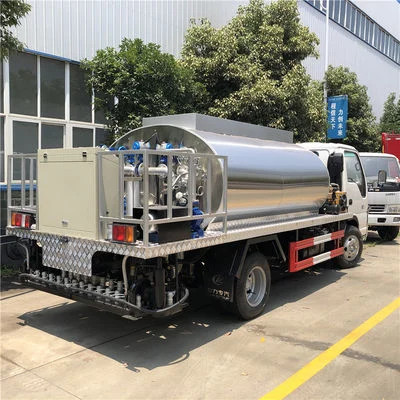

2. Dongfeng Chassis – The Market Leader for Versatility
Dongfeng Motor Corporation, headquartered in Wuhan, Hubei Province, is one of China’s largest and most established commercial vehicle manufacturers. For 6000L bitumen sprayers, the Dongfeng 4×2 medium-duty chassis (typically the Dongfeng 1090 or Duolika series) is the most widely used platform in China and export markets.
Key Specifications (Typical Dongfeng 4×2 Chassis):
- Engine: Cummins B125 33 or Yuchai YC4FA120-33 (120–125 HP)
- Transmission: 6-speed manual (WLY or Fast Gear)
- Wheelbase: 3,800 mm
- Tires: 8.25R16 steel radial
- Gross Vehicle Weight: 11,995 kg
- Curb Weight: ~6,300 kg
- Overall Dimensions: 7,380 × 2,280 × 2,650 mm
Advantages:
- Excellent availability: Dongfeng chassis are stocked in large quantities across China and most export markets, ensuring fast delivery and easy spare parts sourcing.
- Proven reliability: With decades of refinement, the Dongfeng medium-duty platform offers a good balance of payload capacity, maneuverability, and fuel efficiency.
- Strong dealer network: Dongfeng’s after-sales service covers most countries in Africa, Southeast Asia, the Middle East, and South America.
- Cost-effective: Dongfeng-based bitumen sprayers are generally 10–15% more affordable than Shacman or FAW equivalents.
Ideal for: Small to medium-scale road projects, municipal maintenance, and price-sensitive markets.

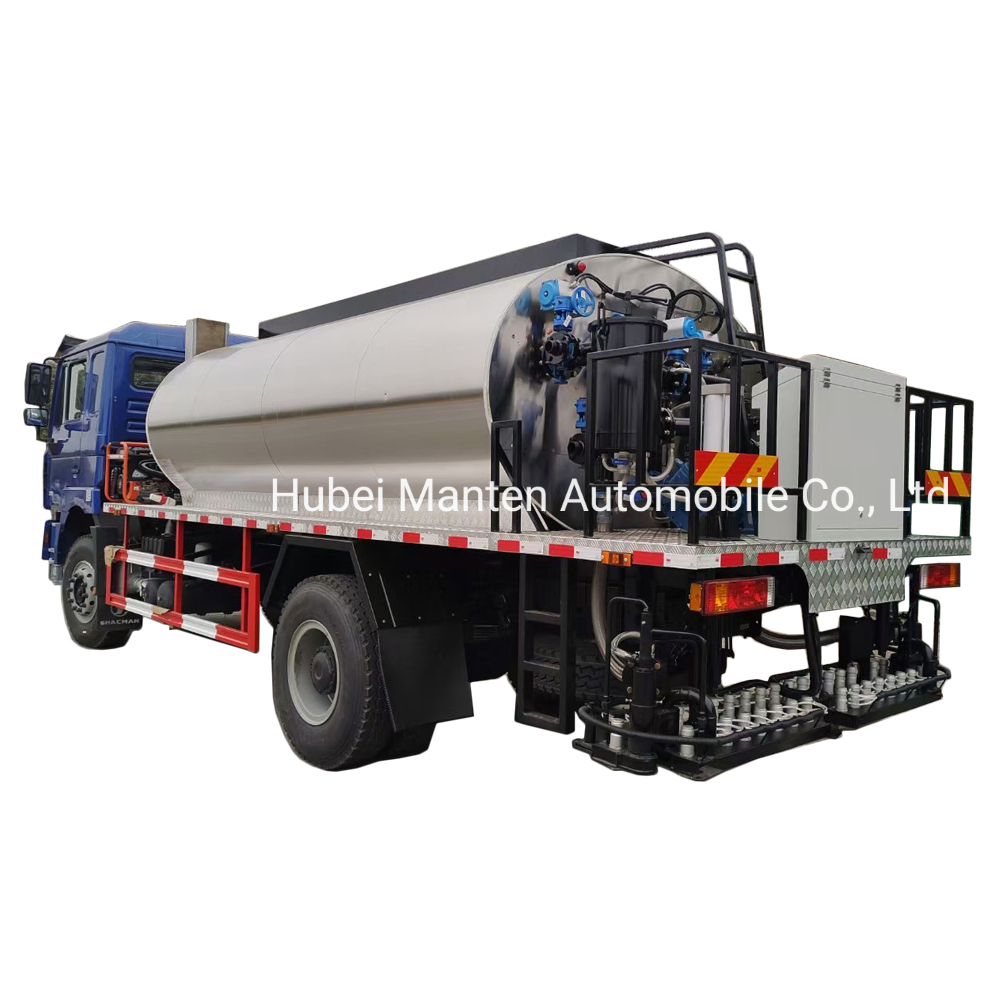

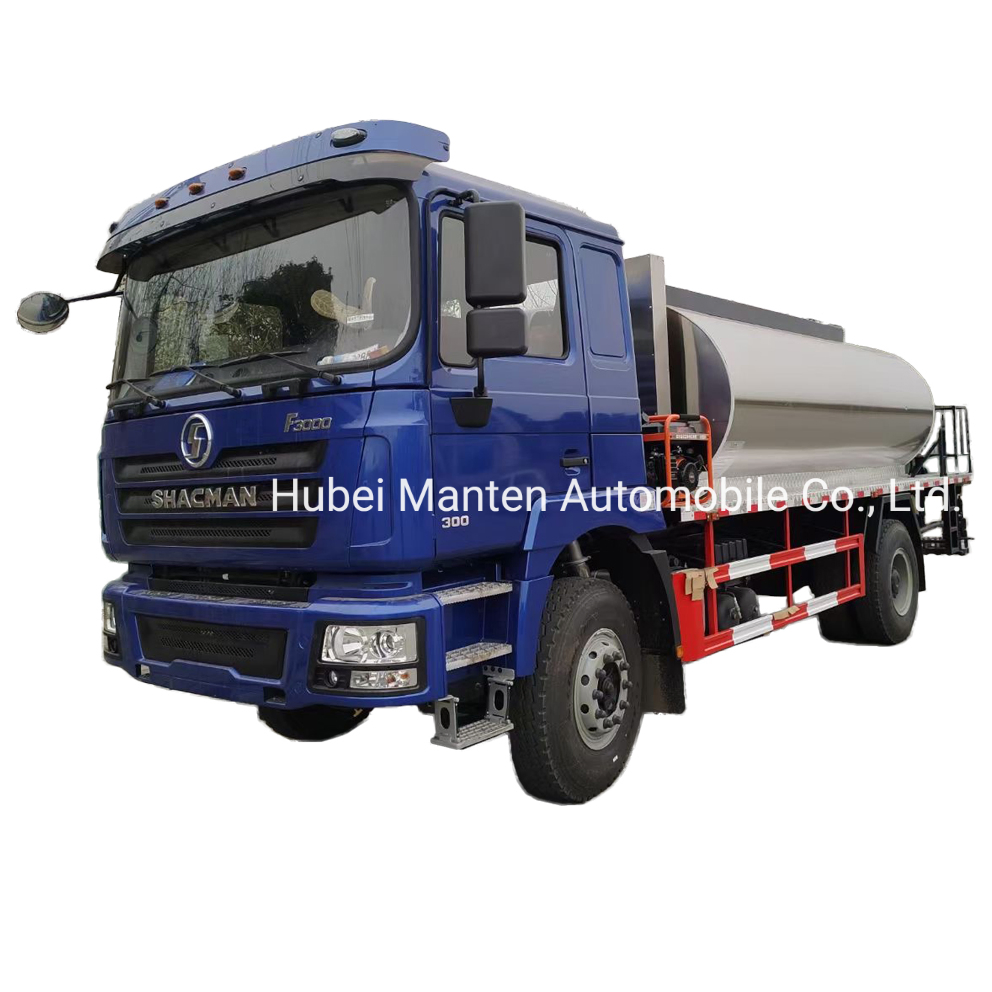

3. Shacman Chassis – Heavy-Duty Performance for Challenging Terrain
Shacman (Shaanxi Automobile Group) is renowned for producing heavy-duty trucks with exceptional off-road capability and high engine power output. The Shacman L3000 and X9 series 4×2 chassis are popular choices for 6000L asphalt distributors, particularly in markets requiring robust performance on rough terrain.
Key Specifications (Typical Shacman L3000 4×2 Chassis):
- Engine: Weichai WP4.1 or Yuchai engine (160–210 HP)
- Transmission: 6-speed or 8-speed manual (Fast Gear)
- Wheelbase: 3,800–4,500 mm
- Tires: 8.25R16 or 9.00R20
- Gross Vehicle Weight: 11,955–16,000 kg
- Curb Weight: ~7,000 kg
- Overall Dimensions: 7,500 × 2,350 × 2,900 mm
Advantages:
- Higher engine power: The Weichai engine delivers significantly more torque, making the Shacman chassis ideal for hilly terrain, high-altitude projects, and rough construction sites.
- Superior off-road capability: Heavier-duty frame and suspension components provide better stability on unpaved roads and construction sites.
- Larger payload capacity: The heavier gross vehicle weight allows for carrying additional asphalt or optional equipment like a chip spreader.
- Premium cabin comfort: The L3000 and X9 series feature more spacious, air-conditioned cabins with better ergonomics for operator comfort during long working hours.
Ideal for: Large-scale highway projects, rough terrain operations, and markets where durability under heavy loads is the top priority.

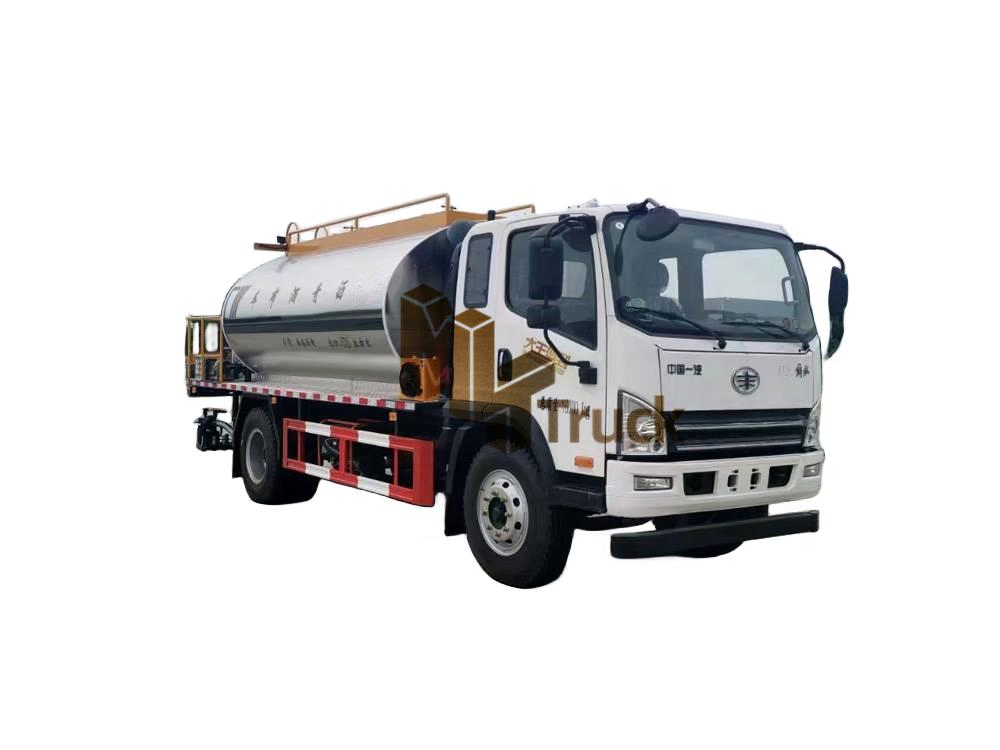

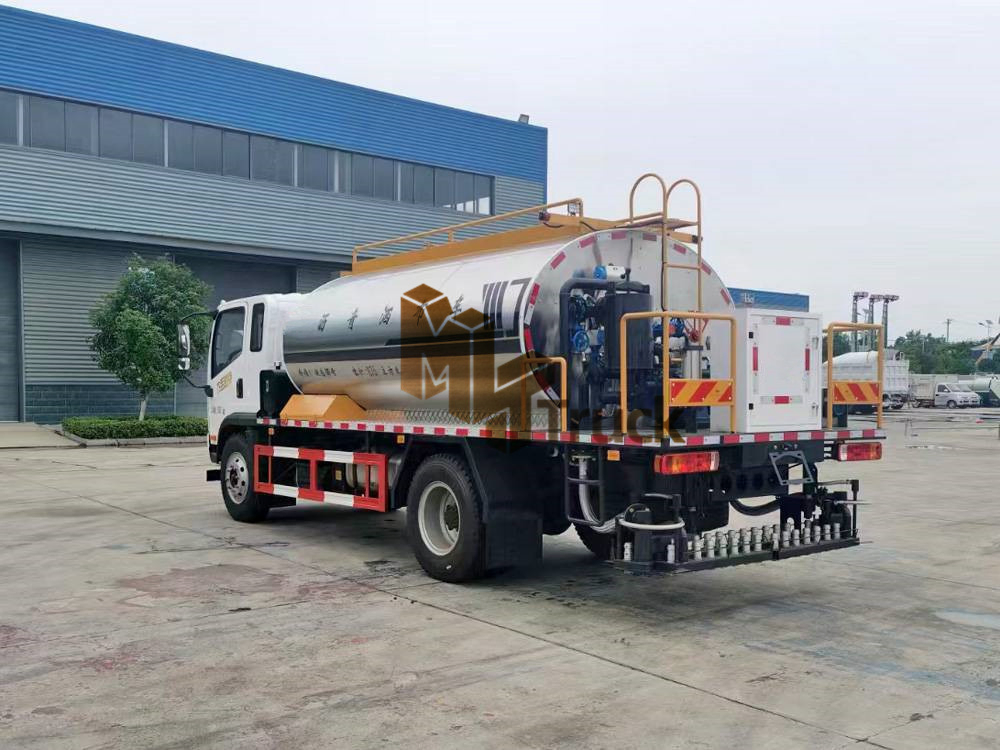

4. FAW Chassis – Precision Engineering and Long-Distance Reliability
FAW (First Automobile Works), headquartered in Changchun, Jilin Province, is China’s oldest automotive manufacturer. The FAW Tiger VH series 4×2 chassis is increasingly specified for high-end 6000L asphalt distributor trucks, particularly in markets that prioritize fuel efficiency and long-distance transport capability.
Key Specifications (Typical FAW Tiger VH 4×2 Chassis):
- Engine: Cummins ISF3.8s3154 (154 HP, Euro 3/5)
- Transmission: WLY 6G55 6-speed manual
- Wheelbase: 4,200 mm
- Tires: 8.25R16 (6+1)
- Front Axle: 2.8T / Rear Axle: 8T (FAW 1080)
- Curb Weight: ~6,900 kg
- Fuel Tank: 150L aluminum
Advantages:
- Fuel efficiency: The Cummins ISF engine is widely recognized for its excellent fuel economy, reducing operational costs over the lifecycle of the equipment.
- Long wheelbase: The 4,200 mm wheelbase provides superior straight-line stability at highway speeds, making it ideal for projects requiring frequent inter-site relocation.
- Premium components: FAW chassis come with WABCO air brake valves, enlarged radiators, and maintenance-free batteries as standard, ensuring higher uptime.
- Smooth ride: The Tiger VH cabin offers excellent noise insulation and ride comfort, reducing operator fatigue during long-distance travel.
Ideal for: Projects requiring frequent road travel between sites, fuel-conscious buyers, and applications where long-term total cost of ownership is the deciding factor.
5. Head-to-Head Comparison Table
| Parameter | Dongfeng 4×2 | Shacman L3000 4×2 | FAW Tiger VH 4×2 |
|---|---|---|---|
| Engine Power | 120–125 HP | 160–210 HP | 154 HP |
| Engine Brand | Cummins / Yuchai | Weichai / Yuchai | Cummins ISF |
| Wheelbase | 3,800 mm | 3,800–4,500 mm | 4,200 mm |
| GVW | ~12,000 kg | ~12,000–16,000 kg | ~11,995 kg |
| Fuel Efficiency | ★★★★ Good | ★★★ Moderate | ★★★★★ Excellent |
| Off-Road Capability | ★★★ Moderate | ★★★★★ Excellent | ★★★★ Good |
| Parts Availability | ★★★★★ Excellent | ★★★★ Good | ★★★★ Good |
| Base Price (Chassis) | $$ (Most Affordable) | $$$ (Premium) | $$ (Mid-Range) |
| Cabin Comfort | ★★★ Standard | ★★★★★ Premium | ★★★★ Good |
6. Which One Should You Choose?
The right chassis for your 6000L bitumen sprayer depends on your specific project requirements:
Choose Dongfeng if:
- You need a cost-effective, reliable solution for standard road construction and maintenance.
- You prioritize fast delivery, easy spare parts access, and a well-established service network.
- Your projects are primarily on paved roads or well-maintained construction sites.
Choose Shacman if:
- Your projects involve rough terrain, steep grades, or high-altitude environments.
- You require higher engine power and heavier payload capacity for demanding applications.
- Operator comfort during long shifts is important to you.
Choose FAW if:
- Fuel efficiency and long-term operating cost are your top concerns.
- Your crews frequently travel long distances between project sites.
- You prefer premium chassis components (WABCO, Cummins ISF) for maximum uptime.
Conclusion
Dongfeng, Shacman, and FAW each offer distinct advantages when configured as a 6000L bitumen sprayer chassis. Dongfeng leads in affordability and parts availability, Shacman excels in heavy-duty performance, and FAW stands out for fuel efficiency and long-distance reliability. By carefully evaluating your project’s terrain, budget, and operational requirements, you can select the ideal chassis to maximize your road construction productivity and return on investment.
For more information about 6000L asphalt distributor trucks and customized configurations, contact the IKOM Machinery sales team for expert guidance tailored to your project needs.
