Micro Surfacing

China’s Leading Slurry Seal Innovator ,Smart Mixing, Flawless Paving, Trusted by 50+ Projects Worldwide

8

Precise proportioning

Asphalt, aggregates, water are automatically and precisely proportioned

2

Intelligent Interaction

7-inch screen, real-time monitoring of equipment status, enhancing construction safety

7

Hydraulic extension

Hydraulic continuous adjustment of the width of the paving box

Construction Cases

In Sinaloa, Mexico, slurry seals are applied using cationic slow-cracking emulsified asphalt (CSS-1h), which accounts for 7.5%-15% of the aggregate weight, with 0.5%-2% cement as filler to enhance adhesion. Local hard limestone crushed stone is used as the aggregate, with a primary ES-2 grade (4.75-9.5mm) and a sand equivalent of 50% or more. Slurry sealers are applied at a constant speed of 1.5-3 km/h, maintaining a paving thickness of 4-6 mm. This extends the pavement’s service life by 5-7 years.

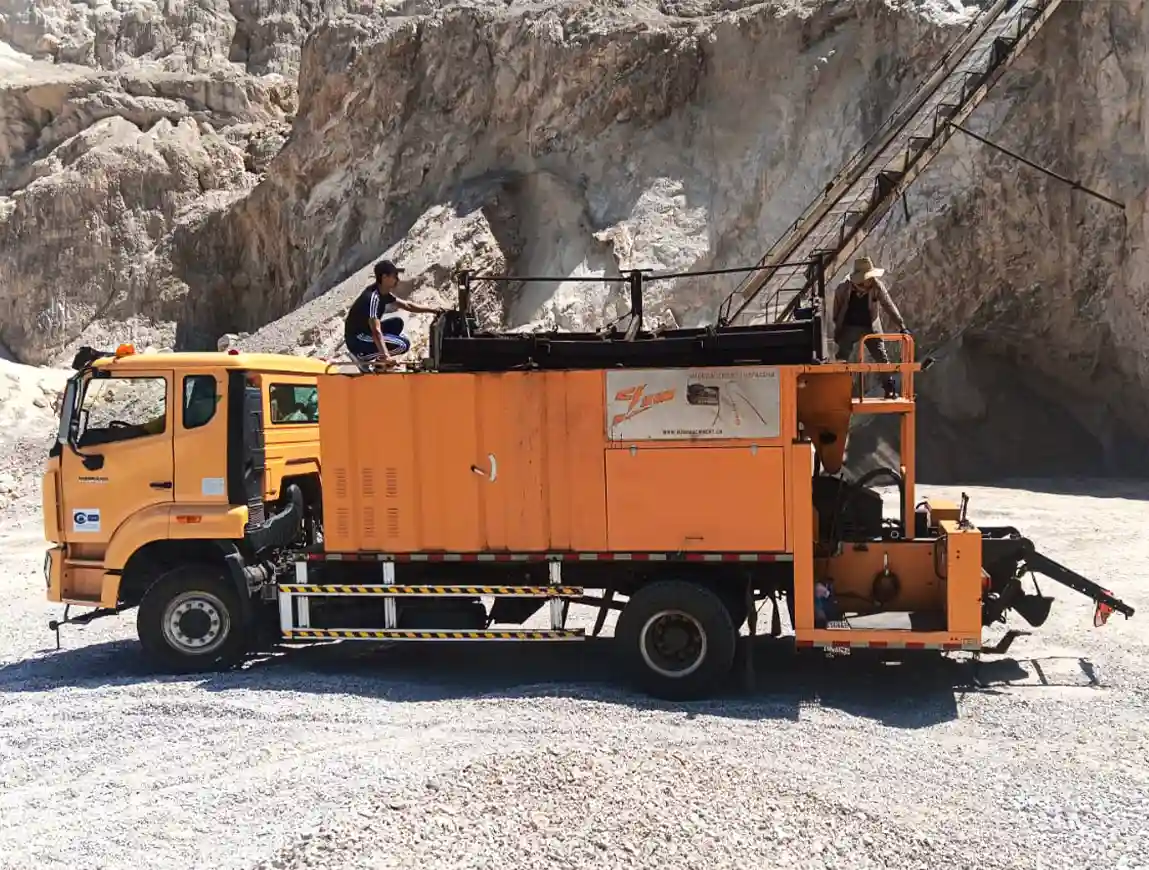

Usage Scenarios

Slurry seal : With a thickness of 3-6mm, it primarily serves as a waterproofing and sealing layer. It has lower strength and is used for light maintenance.

Micro surfacing : This is an improved slurry seal, using polymer-modified emulsified asphalt. With a thickness of 5-10mm, it offers higher strength and durability, capable of withstanding heavy traffic loads. It is commonly used for preventive maintenance or minor damage repair on highways and arterial roads.

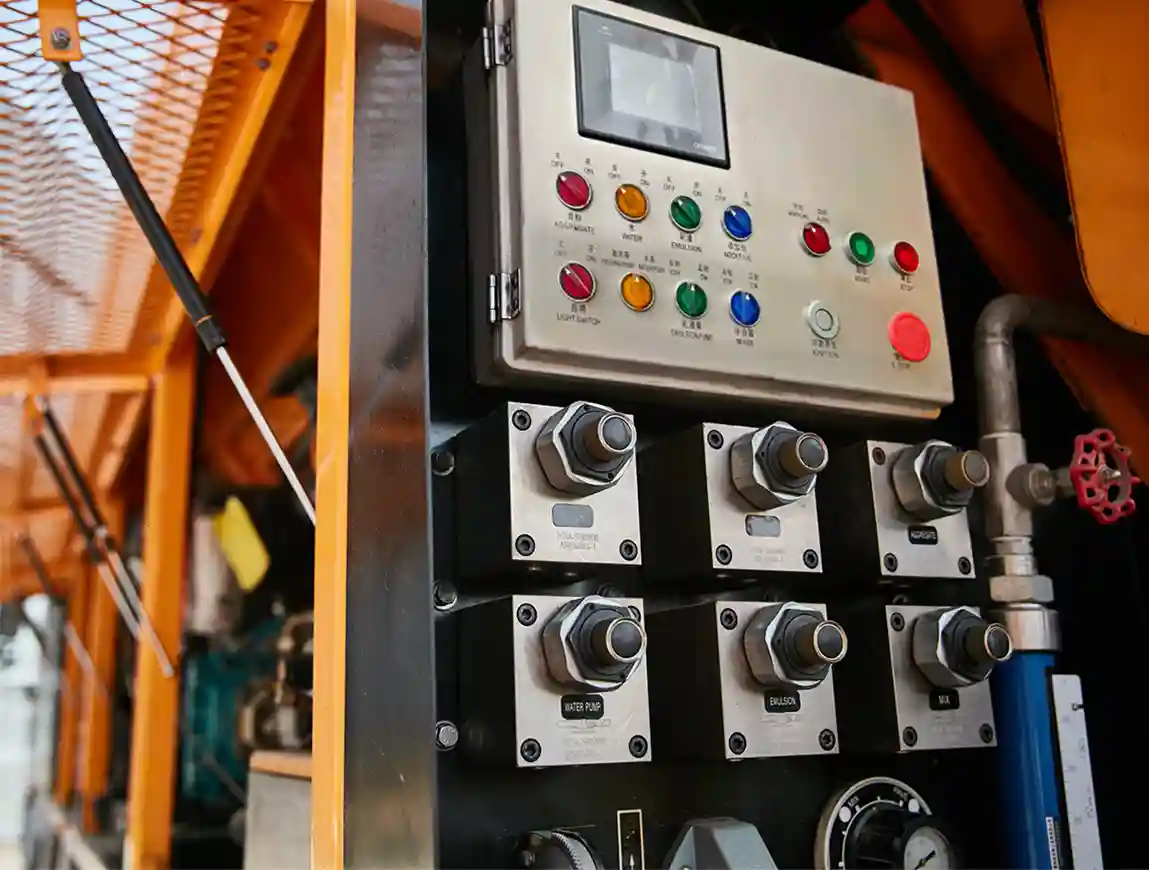

Intelligent Control Technology

Chassis: Dongfeng/Shacman Heavy-duty chassis, 280+ HP, high-altitude turbocharging for 4,500m operation.

Precision Batching System: Twin-shaft forced-action mixer,mixing uniformity >95%. Asphalt pump with precise flow control linked to aggregate belt scale batching error ≤ ±2%.

Intelligent Temp Control & Operation: Engine coolant pre-heat; Emulsified asphalt temp control (40±2°C). 7-inch touchscreen for real-time monitoring (aggregate moisture, asphalt ratio) & construction data backup.

Capacity and Efficiency

Large-Capacity: Water tank & emulsified asphalt tank: 3-4 m³ each, Aggregate hopper capacity: 10-12 m³ Reduces downtime for refilling, ensuring sustained material supply for long-duration operations.

High-Efficiency Mixing System: Twin-shaft forced-action mixer (300-500 RPM);Mixing time 10-15 seconds for uniform blend of aggregates, asphalt, and water Prevents material segregation, ensuring consistent paving quality.

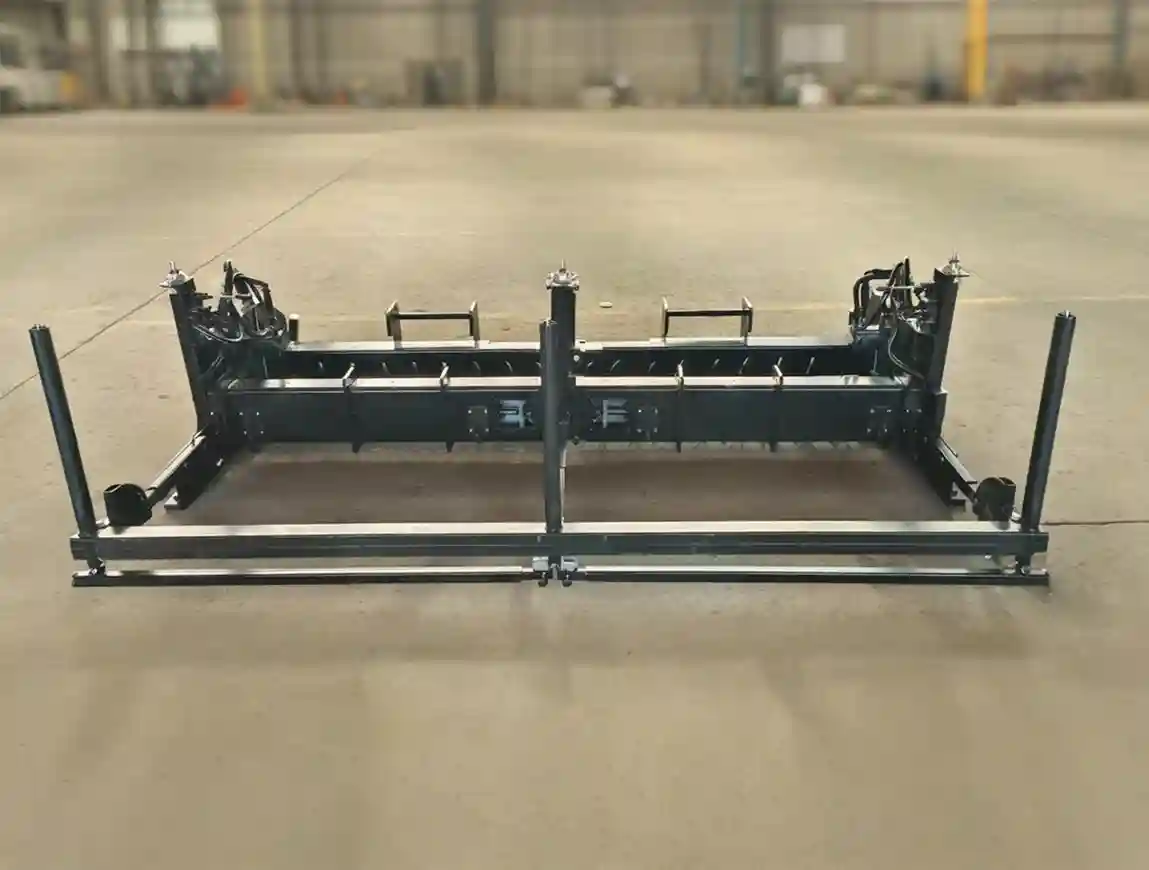

Hydraulic Telescopic Spreading Box: Continuous width adjustment during operation (no pause required) Enhances adaptability to varying road widths, maximizing efficiency.

Safety & Environmental Protection

Emergency Shutdown: Emergency stop buttons in operator cabin & paving zone instantly cut power.

Critical Component Protection: Guardrails/covers on mixer & drive systems.Audible-visual alarms along spreading trough edges.

Waste Recycling: Sealed tanks/containers for asphalt & additives. Anti-leak valves + trays prevent soil contamination. Closed-loop water reuse: Cleaning wastewater → Settled/filtered → Recycled for mixing → Minimizes discharge.

Service & Support Commitments

Parts Support: 10-year spare parts supply • 98% availability of wear parts stocks , 48-hour delivery for emergency orders.
Rapid Response System: 4-hour technical support (domestic business days) , Multilingual support,English/Russian/Arabic-speaking global teams , 72-hour solution proposal for international cases.
Globally Proven Reliability: Exported to 60+ countries,cumulative construction area exceeds 6 million square meters,CE certified , 80% repeat order rate.Adaptable to diverse construction requirements.

Model and Specifications

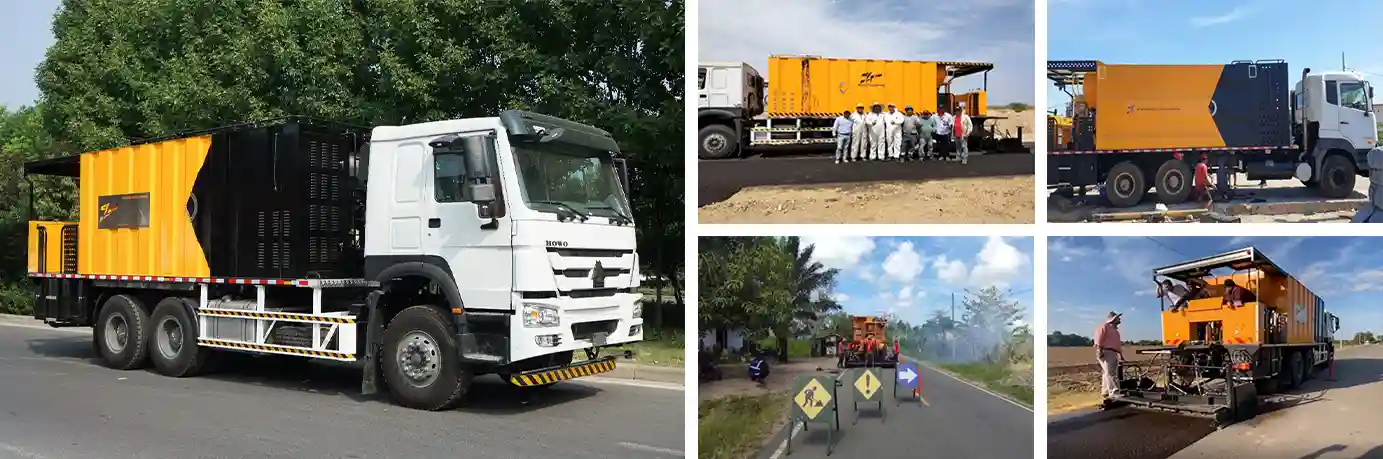

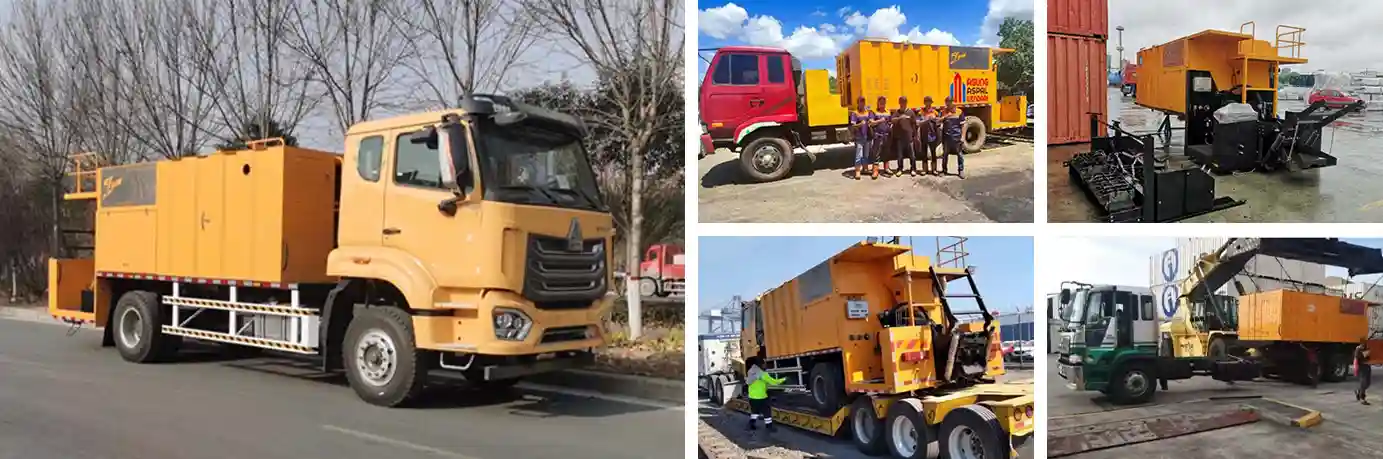

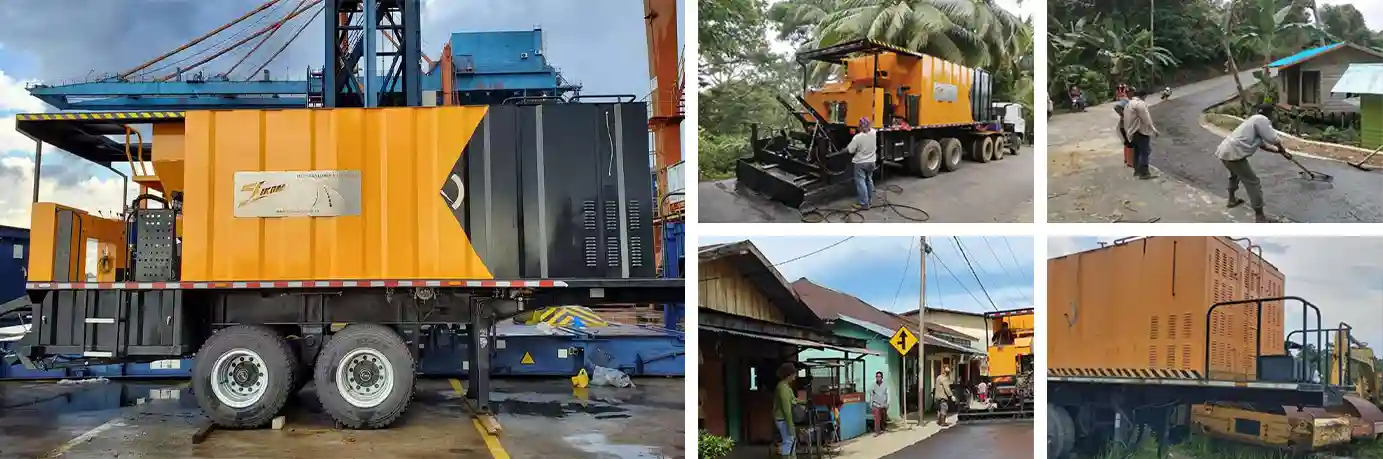

Micro Surfacing Machine are classified into micro surfacing machine,mini micro surfacing machine,Semi-trailer micro surfacing machine.

Model

ZZM5315TFC / ZZM5255TFC

Alternative chassis

HOWO / SHACMAN

Engine

WP10

Power (HP)

380 / 300

Aggregate hopper

12m³ / 10 m³

Max. Load capacity

15 m³ / 12 m³

Emulsion asphalt tank

4000L / 3500L

Water tank

4000L / 3500L

Max. mixer capacity(per minute)

4500kg / 3500kg

Auxiliary engine

Cummins 75kw / 115kw

PLC

Omron

Min. truck speed

1km/h

Paving thickness

3-15mm

Paving width

2.5-4.3m

Model

ZZM5165TFC

Alternative chassis

HOWO / SHACMAN

Emulsion asphalt tank

1200L

Water tank

1200L

Fine material hopper

0.6 m³

Aggregate hopper

6 m³

Minimum speed

1.5-2.0 km/h

Max. mixer capacity(per minute)

3500kg

Auxiliary engine

CBQ / G563 / CFH / G550Q / G550

Asphalt pump

Cummins 75kw

Paving thickness

3-15mm

Paving width

1.6-2.5m / 2.5-4.3m (optional)

Model

ZZM9255TFC

Axis

Fuhua 13T *2

Tyre

11.00R20

Aggregate hopper

10 m³

Emulsion asphalt tank

3500L

Water tank

3500L

Addictive tank

400L

Fine material hopper

2×0.5 m³

Max. mixer capacity(per minute)

3500kg

Auxiliary engine

Cummins 75kw

PLC

Delta

Min. truck speed

1km/h

Paving thickness

3-15mm

Paving width

2.5-4.3m
