Chip Spreader

China’s Top Intelligent Chip Spreader Innovator Millimeter-Level Uniform Spreading ,Instant Width Adjustment ,Serving Projects Across 60+countries.

16

Extra Width

Extendable screed up to 3500mm

16_1

Uniformity

10 independent gates with patented chute for even material flow

17

High Efficiency

Hydraulic drive ensures powerful, consistent performance

Construction Cases

The seal coat construction for sections of the A104 Municipal Highway project in Nairobi will utilize a process of applying asphalt followed by stone chips.

Before construction, the road surface will be cleaned. An asphalt spreader will apply tack coat asphalt according to set parameters, with a rate of approximately 0.8-1.2 L/㎡. A stone chip spreader will then rapidly distribute 6-10 mm stone chips at a rate of approximately 7-9 kg/㎡. After spreading, a rubber-tyred roller will be used to compact the stone chips into the asphalt at a speed no greater than 5 km/h, achieving waterproof and wear-resistant properties.

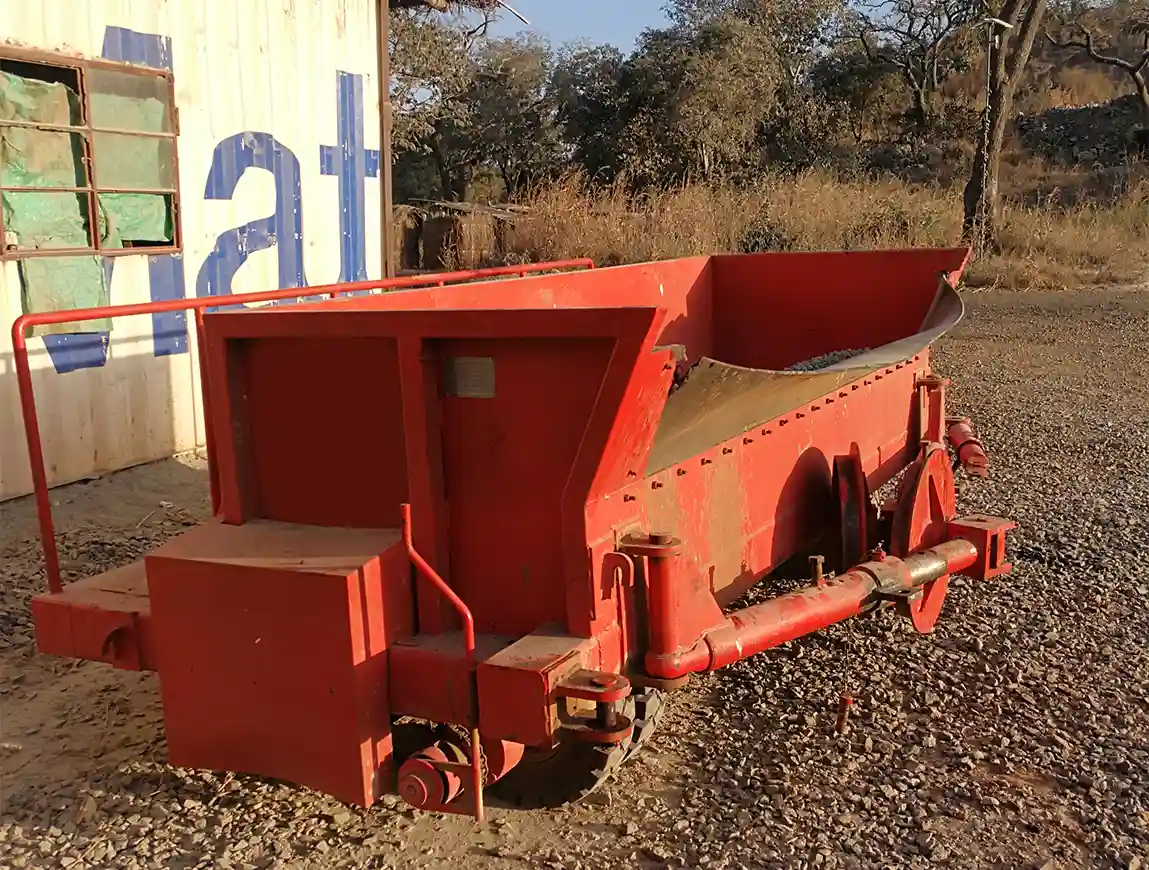

Usage Scenarios

Surface Seal Coating Construction Following asphalt spraying, stone chips are evenly spread to create a wear-resistant layer that enhances road skid resistance and stability.
Base/Cushion Layer Treatment Precisely-sized stone chips fill gaps and optimize gradation to improve sublayer compactness for subsequent paving.
Road Maintenance Applications Combining stone chips with asphalt spray forms a protective seal coat for waterproofing and preventing pavement deterioration.

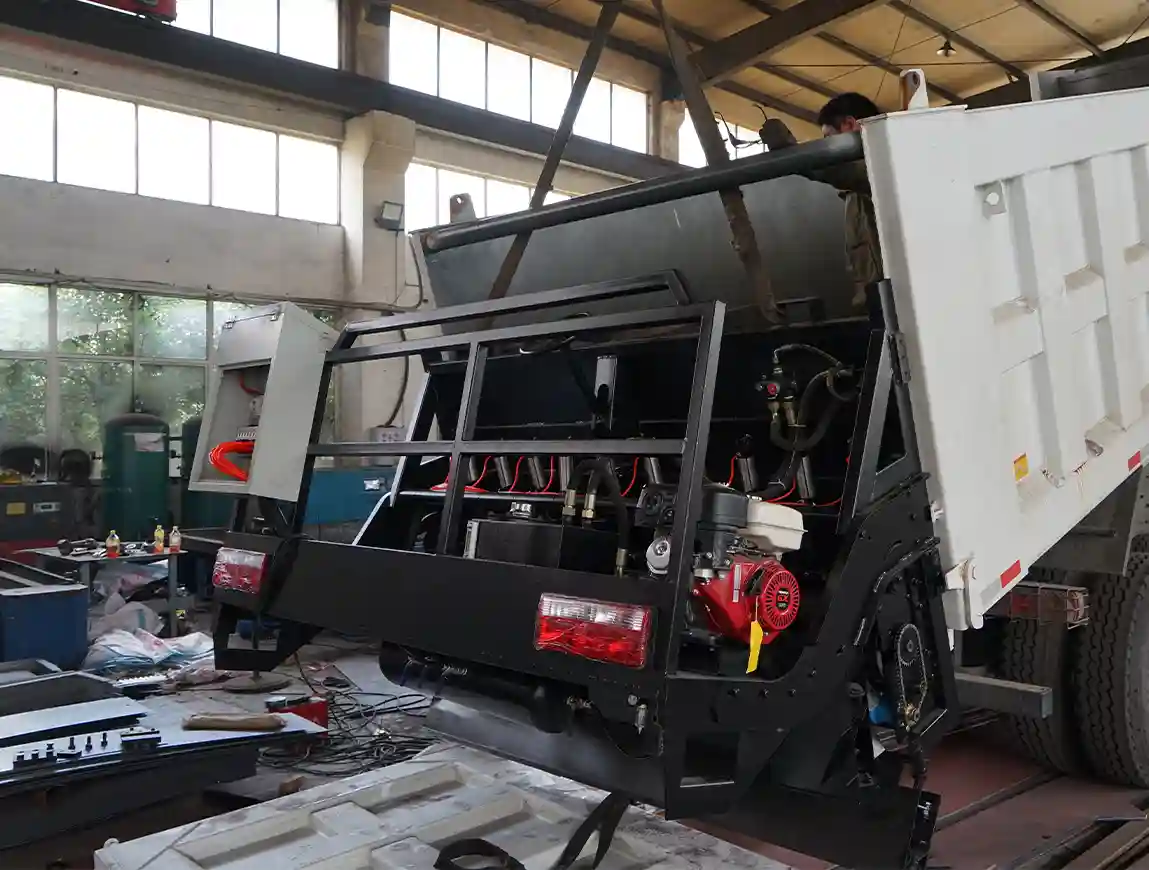

Compact & Efficient Control System

Uniform Spreading: Rotating rollers or plate-type designs ensure even lateral distribution of stone chips (3mm–30mm), preventing uneven thickness or gaps.

Flexible Mounting: Choose between (hanging) or wheel-holding configurations.

Easy Operation: Adjust settings and control start/stop via a panel or optional remote.

Reliable Power: Honda GX270 engine with hydraulic drive ensures efficient performance, easy maintenance, and reduced failure risks.

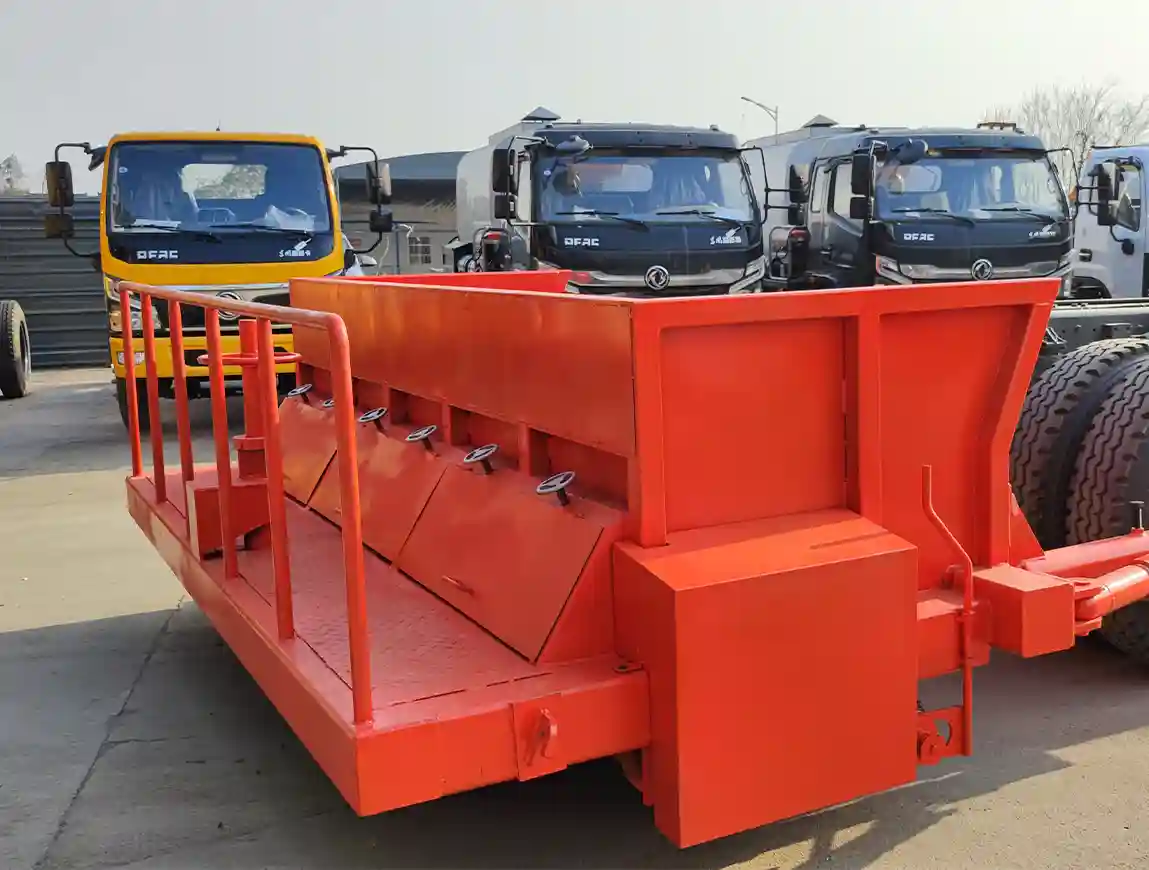

Safety & Environmental Protection

Safety Features: The system incorporates multiple protective measures, including an emergency brake mechanism that triggers immediate shutdown in case of anomalies, effectively preventing accidents. All moving components are fully enclosed to eliminate the risk of accidental contact injuries during operation.

Eco-Friendly Design: Equipped with an advanced spreading system for precise material distribution, it minimizes waste and environmental impact. The built-in dust suppression reduces airborne particles, while optional low-noise operation decreases disturbances for surrounding areas.

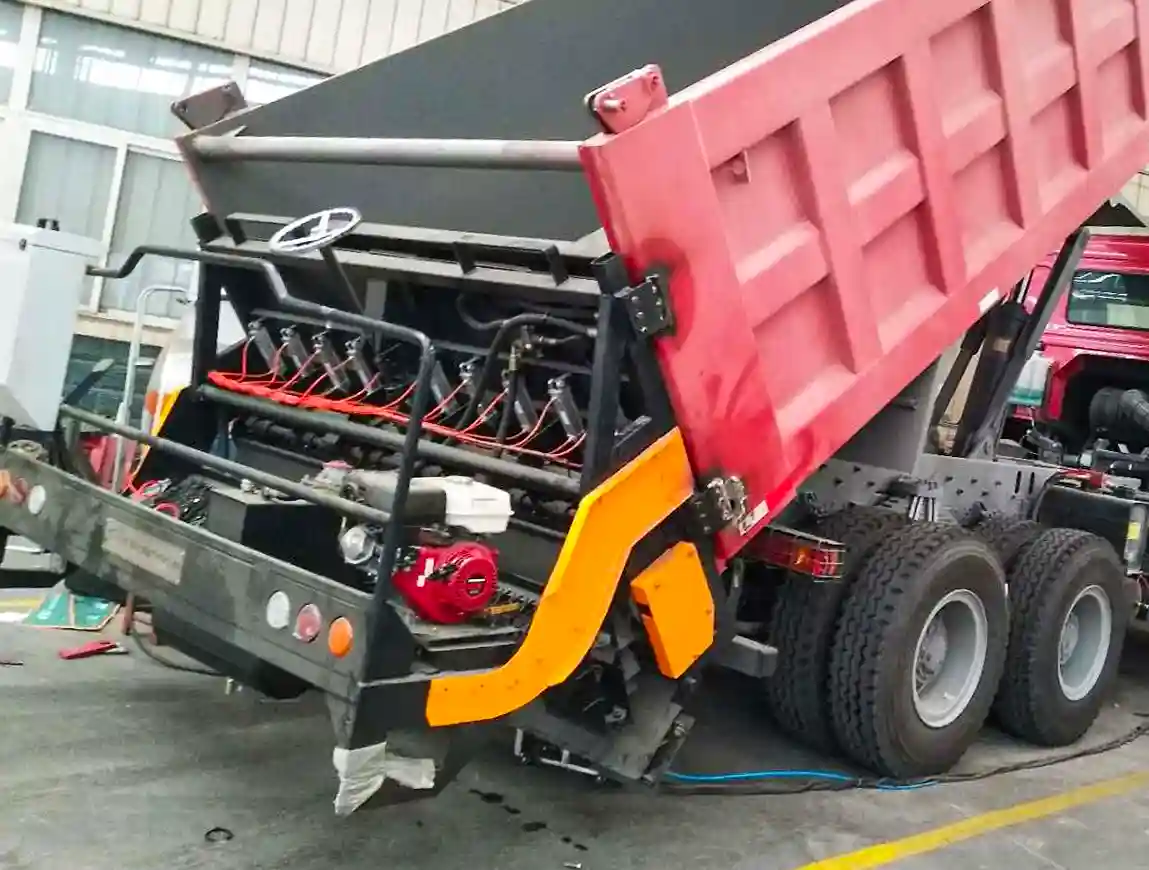

Service & Support Commitments

Parts Guarantee: 10-year spare parts supply with 98% coverage for wear-prone components. Emergency orders ship within 48 hours.

Rapid Response: 4-hour technical support (domestic workdays), with international teams providing English/Russian/Arabic support and 72-hour overseas solution proposals.

Globally Proven Quality: Exported to 60+ countries, used in 6M+ m² of projects, CE-certified, 80% repeat customer rate, and adaptable to diverse construction needs.

Model and Specifications

IKOM Chip Spreaders are classified into two types ZM-A310 chip spreader and ZM-SS3000 chip spreader.

Mode

ZM-A310

Dimension

2500×2000×1900(mm)

Chipping Size

5~20(mm)

Spreading Width

MAX 3100(mm)

Total Weight

1050(Kg)

Heating transfer oil Tube

OMR-80

Generator

GX270 Gasoline Engine

Dump truck Hopper width

2410-2460 mm

Height from hopper floor to ground

≥1350mm

Model

ZM-SS3000

Dimension

3600×3050(2100 hitch fold)×1400(mm)

Chipping

Size 3~30(mm)

Spreading Width

MAX 3000(mm)

Total Weight

2000(Kg)

Spread value

1-40 m³/ km2

Spread speed

50-80m/min

Spread difference

250mm

Get Instant Quote & Info

IKOM is a professional company in producing asphalt and road construction equipment,adhering to the principle of providing customers with the best quality products. Fill out our quote form and we’ll reply to your message within 24 hours!I’m coming for your road.
