chip sealer

China’s No.1 Chip Sealer Exporter, Efficient synchronization, Precise spraying, Serving 100+ Construction Sites Globally.

1

Precision Spraying

smart hydraulic servo system, ±1.5% accuracy

2

Intelligent Interaction

10.1 inch touchscreen with Siemens PLC

2-1

Efficient synchronization

Independent auxiliary engine-driven hydraulic system

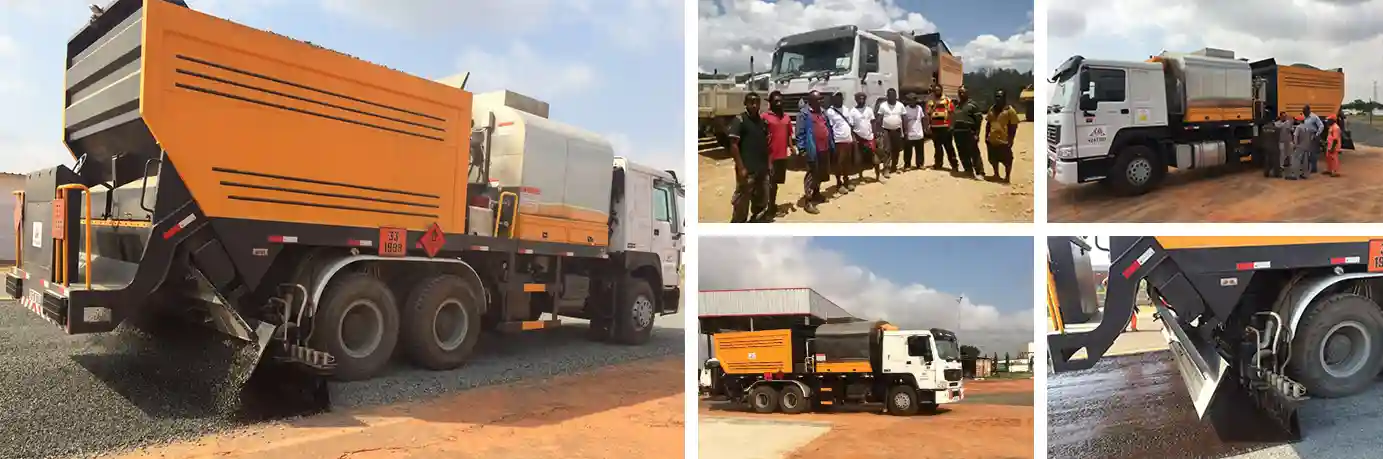

Construction Cases

Double surface treatment Process with Asphalt and Aggregate in Botswana. Asphalt heating temperature is typically controlled between 160-190°C. Constructed using a synchronous chip sealer, the first layer has a spray rate of 1.2 L/m² with aggregate size of 14-20 mm, and the second layer has a spray rate of 0.9 L/m² with aggregate size of 6.5-14 mm. Compaction is performed using double-drum and rubber-tired rollers.

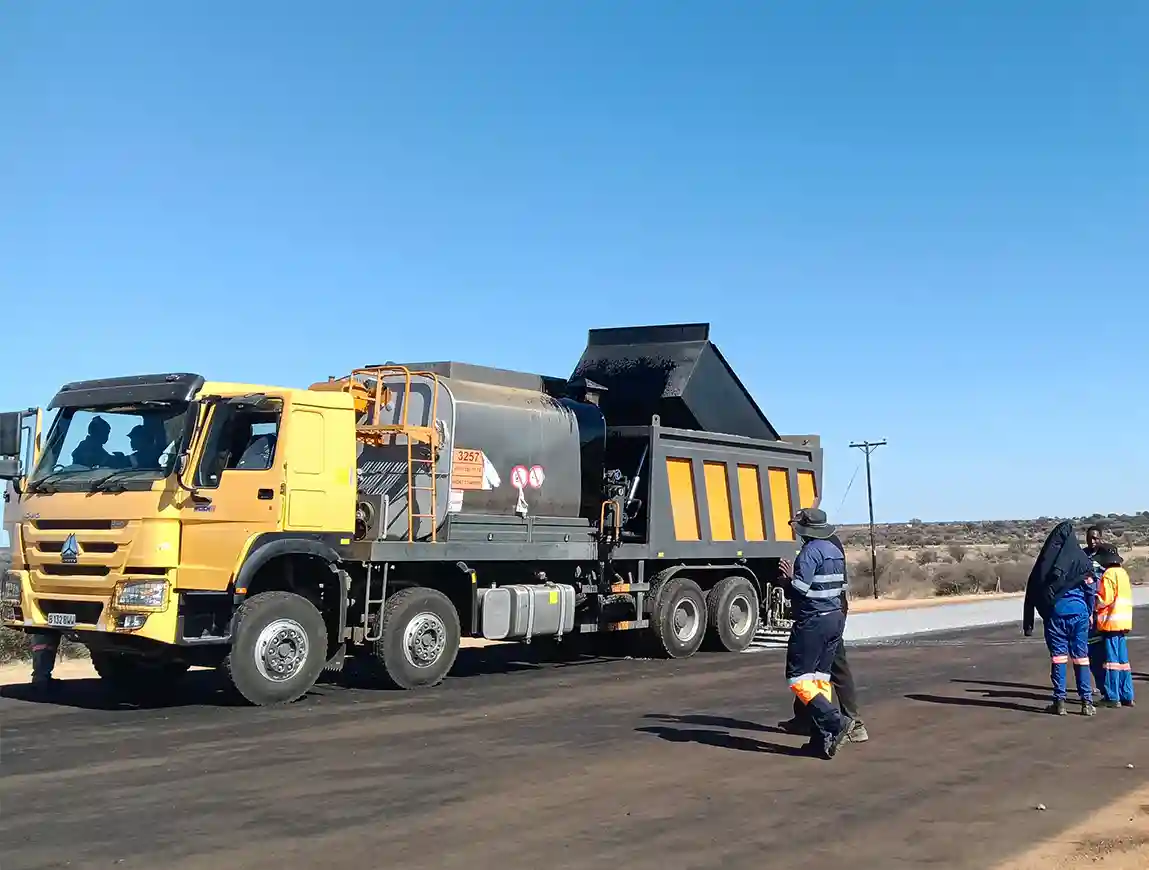

Usage Scenarios

Prime coat: Simultaneous spraying of asphalt and aggregate seals base course pores to prevent water infiltration, enhances bonding with the surface layer, and protects the base course from damage.

Seal coat: Constructed in two layers to improve pavement skid resistance and wear resistance; can serve as a wearing course or maintenance layer.

SAMIL over Cement: Absorbs stress, reduces reflective cracking, and improves interlayer bonding.

Cape Seal: Combines a chip seal base layer with a micro-surfacing or slurry seal surface layer.

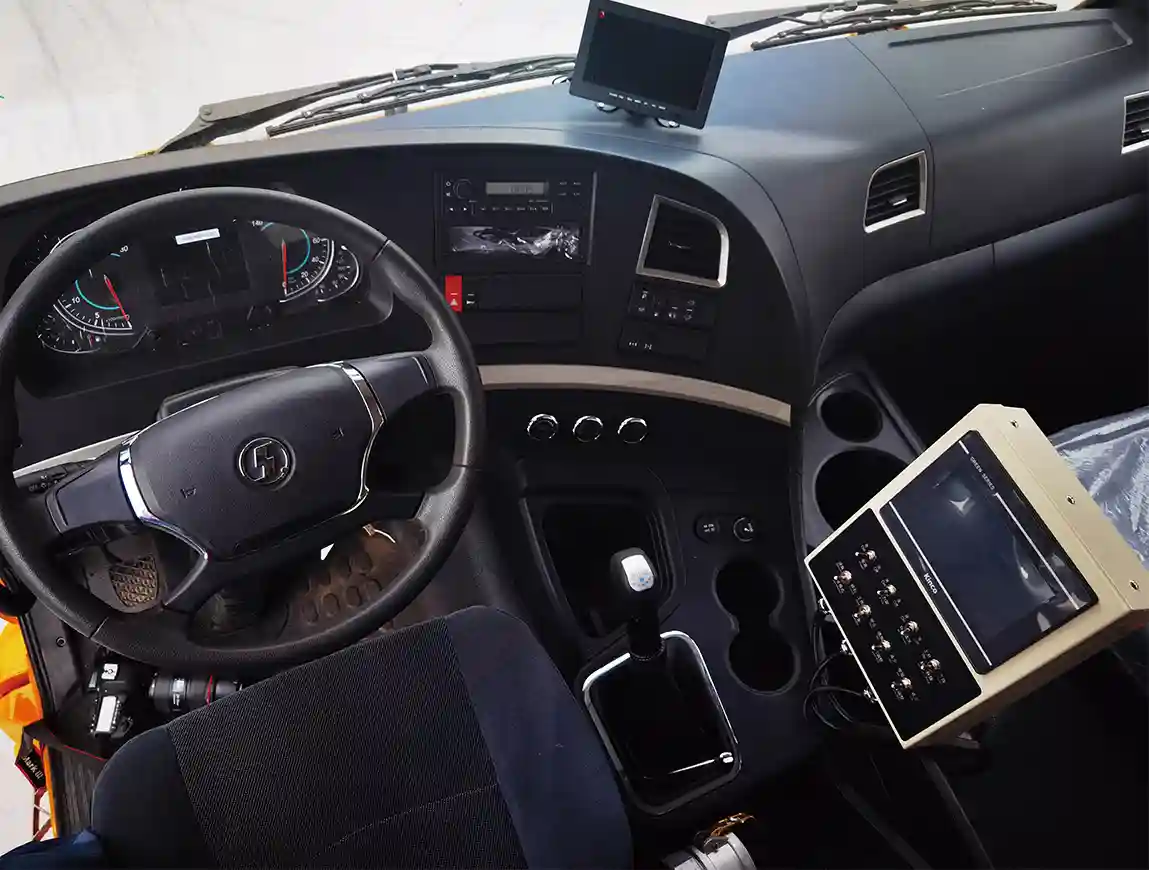

Intelligent Control Technology

Chassis: Custom heavy-duty chassis (e.g., HOWO, Shacman) equipped with 300+ HP engines, suitable for extreme conditions like high altitudes and high temperatures.

Synchronous Material Application: High-quality asphalt pump and hydraulically driven aggregate spreader ensure synchronized operation with spray accuracy ≤ ±1.5%.

Intelligent Heating: Italian-made burner with thermal oil circulation enables heating rates up to 20°C/h and maintains constant asphalt temperature.

Fully Automated Control: 10-inch touchscreen displays real-time spray pressure, temperature, vehicle speed, etc. Supports one-touch parameter presets and adaptive speed adjustment.

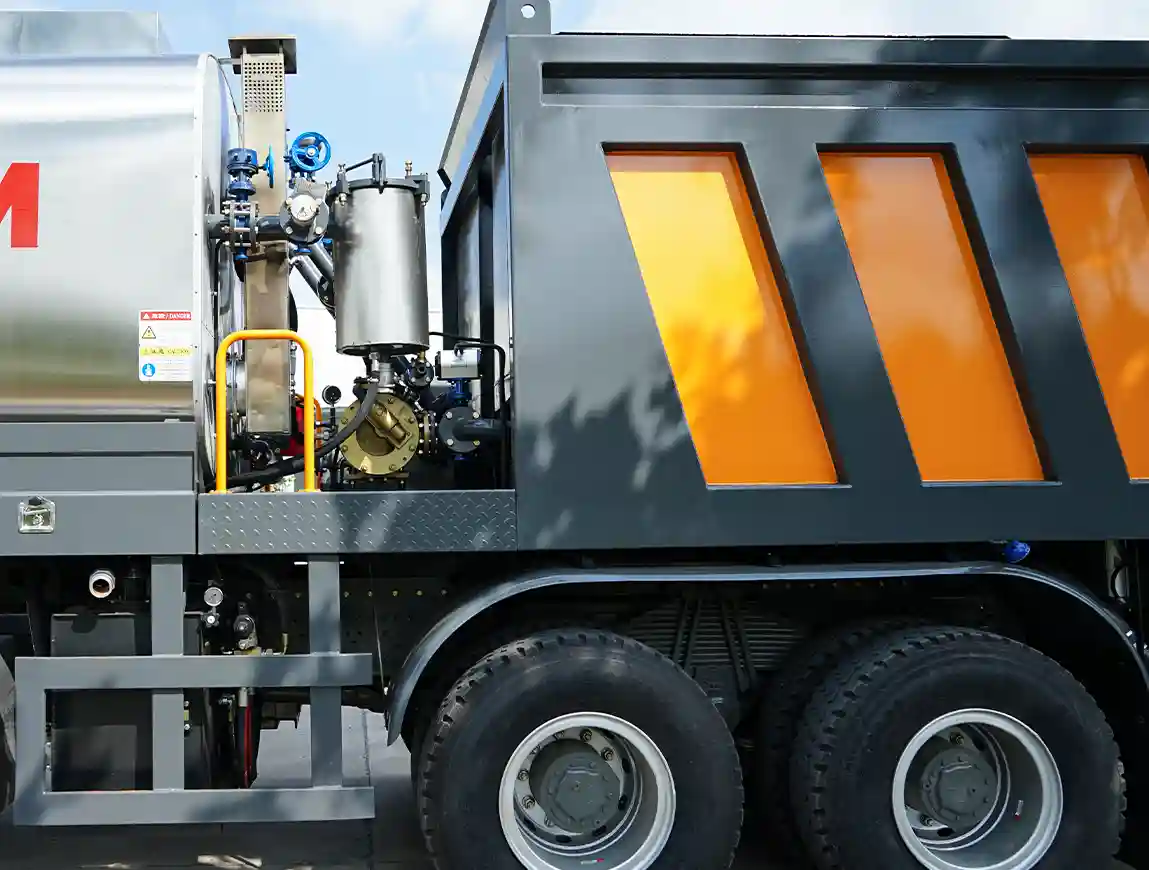

Capacity and Efficiency

Large Capacity: Asphalt tank volume: 8–10 m³; Aggregate hopper volume: 10–14 m³. Single operation coverage exceeds 15,000 m².

High Efficiency: Maximum working speed: 8 km/h; Daily construction capacity: 30,000–50,000 m² (50% more efficient than traditional methods). Dual-path cleaning system (high-pressure air + diesel) cleans pipelines within 10 minutes, minimizing downtime.

Durability Assurance: The key components are equipped with a variable pump hydraulic system, and the average downtime-free time exceeds 2000 hours. Multi-layer anti-corrosion tank treatment ensures a service life of 5+ years.

Safety & Environmental Protection

Safety: Daily pre-operation checks of brakes and spray systems are mandatory. High-temperature asphalt tank surfaces (exceeding 60°C) must display clear warning signs, and operators require full heat-resistant suits. Erect barriers and warning signs during operations to prevent unauthorized access, injuries from splashing hot asphalt, and aggregate spillage.

Environmental Protection: Clean energy for asphalt heating reduces emissions; collect leaked asphalt to prevent soil contamination; recycle excess aggregate; clean the site post-construction to avoid dust and waste pollution.

Service & Support Commitments

Spare Parts Guarantee: 10-year continuous supply commitment with 95% inventory coverage; emergency orders shipped globally within 48 hours.

Rapid Response: 4-hour technical team activation guaranteed.

International Support: Multilingual specialists (English/Russian/Spanish, etc.) deliver tailored solutions for overseas issues within 72 hours.

Global Service: Products exported to 60+ countries, serving 8M+ m² of road projects with 85% customer repurchase rate, adaptable to diverse international construction standards.

Model and Specifications

The Asphalt Synchronous Chip Sealer are divided into 10-cubic 6X4 and 12-cubic 8X4 Asphalt Synchronous Chip Sealer.

Model

ZZM5250TFC

Dimension (mm)

10250x2495x3450

Chassis model

HOWO 6X4

GVW (kg)

25000

Power (HP)

300

Tank capacity

6000L

Nozzles number

34

Spray width(mm)

4000

Hooper capacity

10 m³

Hydraulic pump

HP5V76-AV10

Asphalt pump

QGB450 / 950

PLC

Siemens

Generator

EC6500 Honda, Japan

Burner

RIELLO G20, Italy

Model

ZZM5310TFC

Dimension (mm)

12000x2500x3750

Chassis model

HOWO 8X4

GVW (kg)

31000

Power (HP)

380

Tank capacity

9000L

Nozzles number

34

Spray width(mm)

4000

Hooper capacity

12 m³

Hydraulic pump

HP5V76-AV10

Asphalt pump

QGB450 / 950

PLC

Siemens

Generator

EC6500 Honda, Japan

Burner

RIELLO G20, Italy

Get Instant Quote & Info

IKOM is a professional company in producing asphalt and road construction equipment,adhering to the principle of providing customers with the best quality products. Fill out our quote form and we’ll reply to your message within 24 hours!I’m coming for your road.
