binding agent spreader
China’s Top 1 Binding Agent Spreaders, Precision-Engineered with Global Tech, Empowering Projects Across 65+ Countries.
Dynamic Weighing
Real-time monitoring + automatic calculation prevents material deviation during operation
Modular Control
Adjusts flexibly to road width variations, ensuring uniform coverage
Dust Suppression
Full-process emission control for eco-compliant operation
Construction Cases
In Ghana’s road construction, IKOM Binding Agent Spreaders efficiently distribute cement and lime onto the subgrade. The binding agents are then mixed with local soil and compacted to form a durable stabilized base, ideal for heavy traffic and tropical weather.
The spreaders work seamlessly with Wirtgen milling machines, which first mill uneven or damaged surfaces to ensure optimal spreading conditions, enhancing construction quality and efficiency.

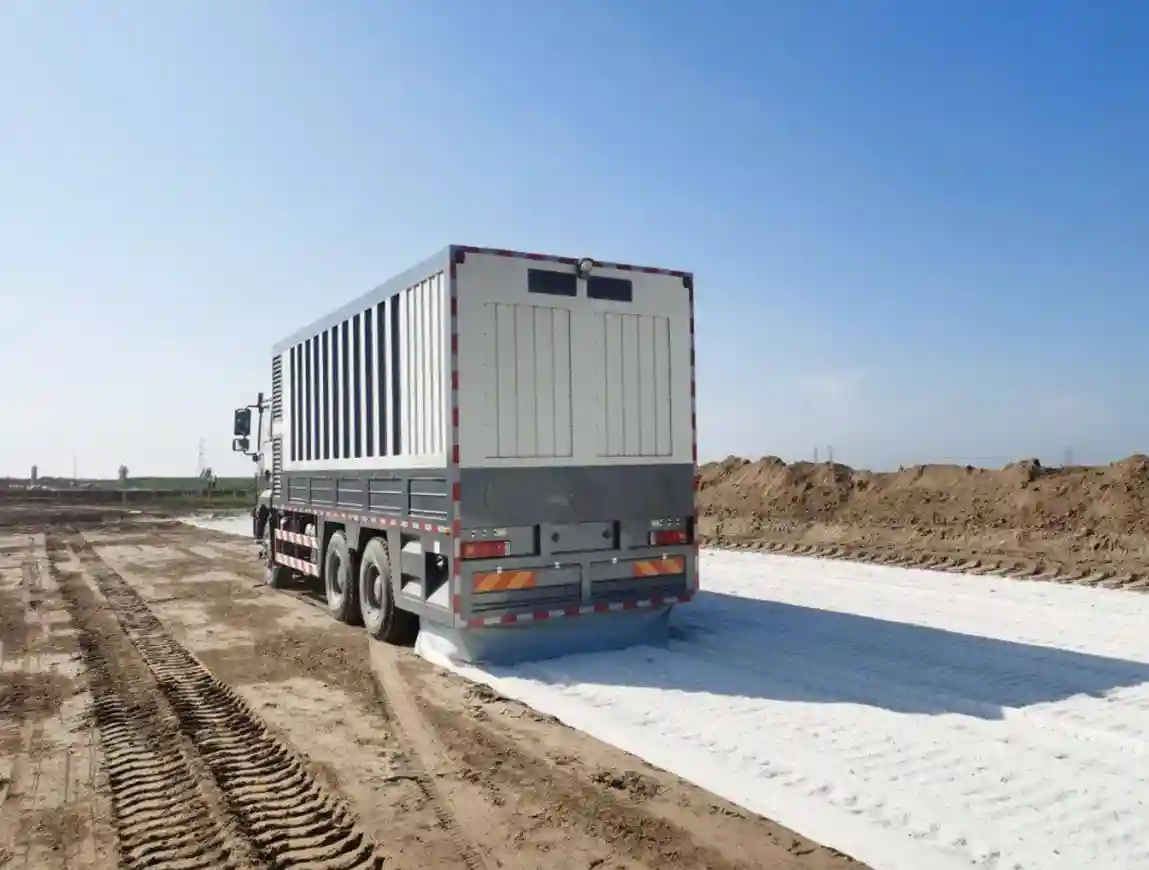

Usage Scenarios
New Road Reinforcement:Spread lime to reduce moisture & boost bearing capacity.Apply cement/lime powder to soil materials.Spread mineral/cement powder for compaction & crack resistance.
Pavement Repair:Spread cement/lime to mix with new repair materials.Apply fine mineral powder to fill cracks & enhance bonding.Spread lime/cement to stabilize the base.
Special Projects:Spread high-strength powder for heavy-load mixing.Use fly ash/lightweight powder for strength-permeability balance.Apply lime/low-grade cement for simple reinforcement & dust/mud control.

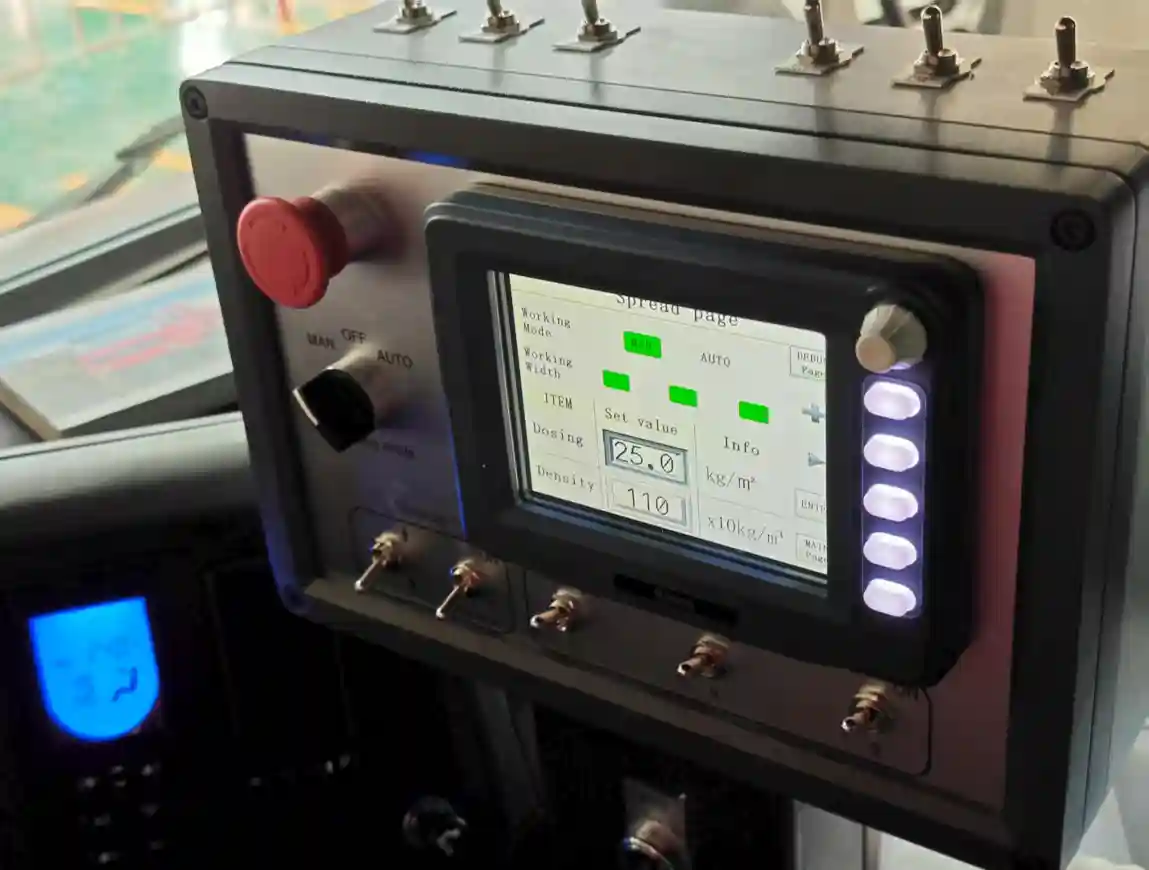

Intelligent Control Technology
Five-D Independent Control System: Supports 3/5-channel independent operation. Allows customized spreading rates for 50cm/80cm zones (e.g., curve weighting, seam reduction).
Speed-Adaptive Spreading: Automatically adjusts material output based on vehicle speed to ensure uniform coverage per unit area.
Full-Process Monitoring: Bosch Rexroth electro-hydraulic system monitors hydraulic status, weighing, and spreading in real-time with auto-diagnostics.
Interactive Terminal: Cabin screen displays real-time hopper level, covered area, and material consumption rate.

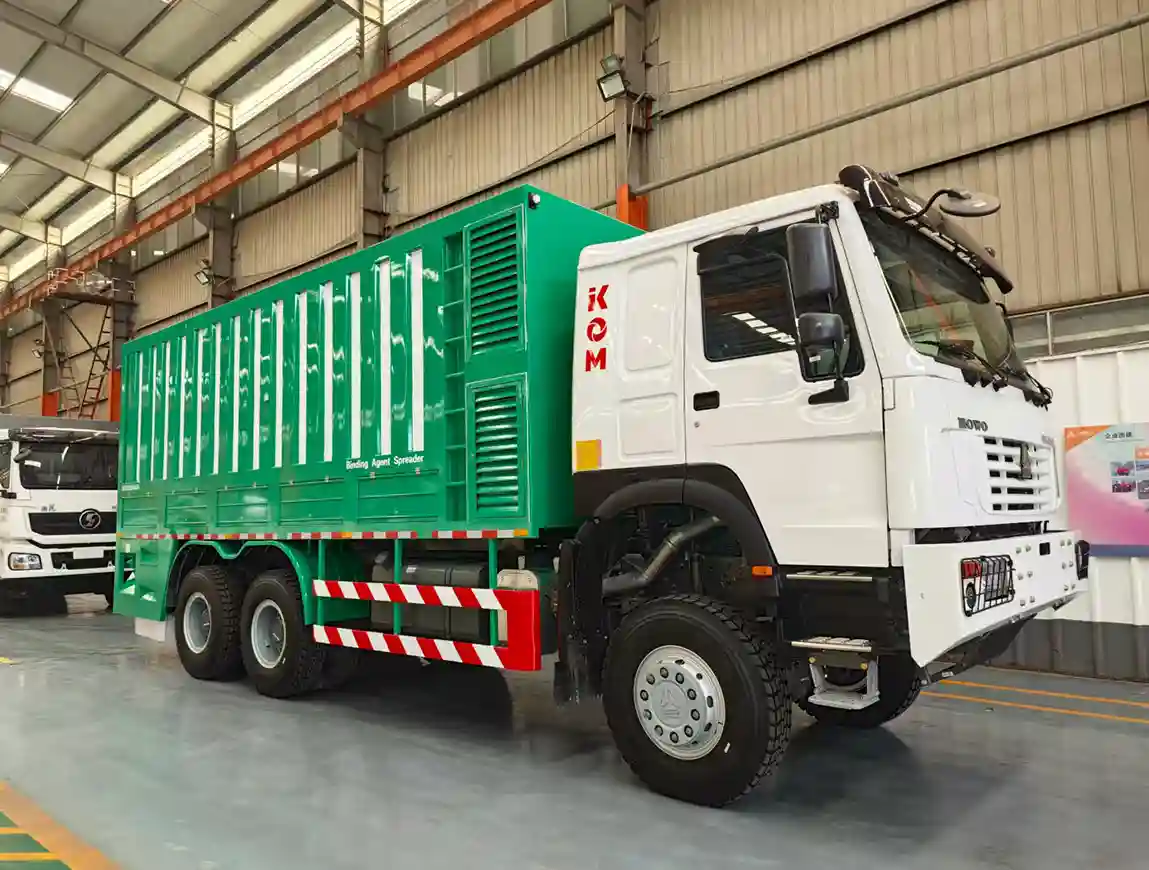

Capacity and Efficiency
Spreading Width: 0.25–2.5m (stepless adjustment).
Precision: 1–40 kg/m² adjustable; ≤±1.5% error (patented metering & dynamic weighing).
Operating Speed: 30-60 meters/min; Daily capacity >20,000 m².
Hopper Capacity: Large 16 m³ minimizes refills.
Power System: Danfoss pump (280Bar) & YINING motor (≥92% efficiency).
Smart Control: Real-time coverage calculation & progress monitoring via dynamic weighing.

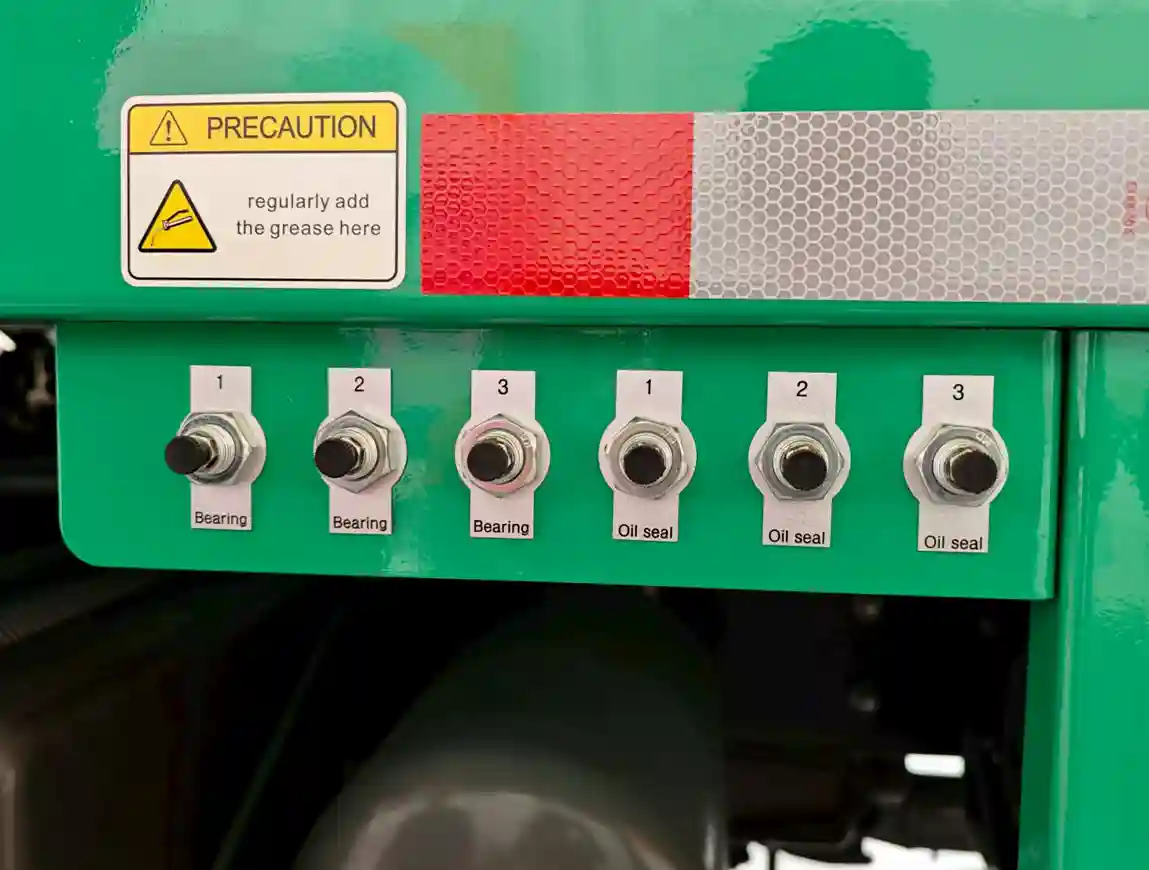

Safety & Environmental Protection
Dust Suppression: Pulse dust collection system (100% filtration efficiency). High-pressure misting covers entire spreading area
Safety Design: Clog-resistant vertical spreader eliminates blockage risks. Hydraulic overload protection (35MPa pressure resistance) ✅ Dual-stage filtration prevents nozzle clogging.

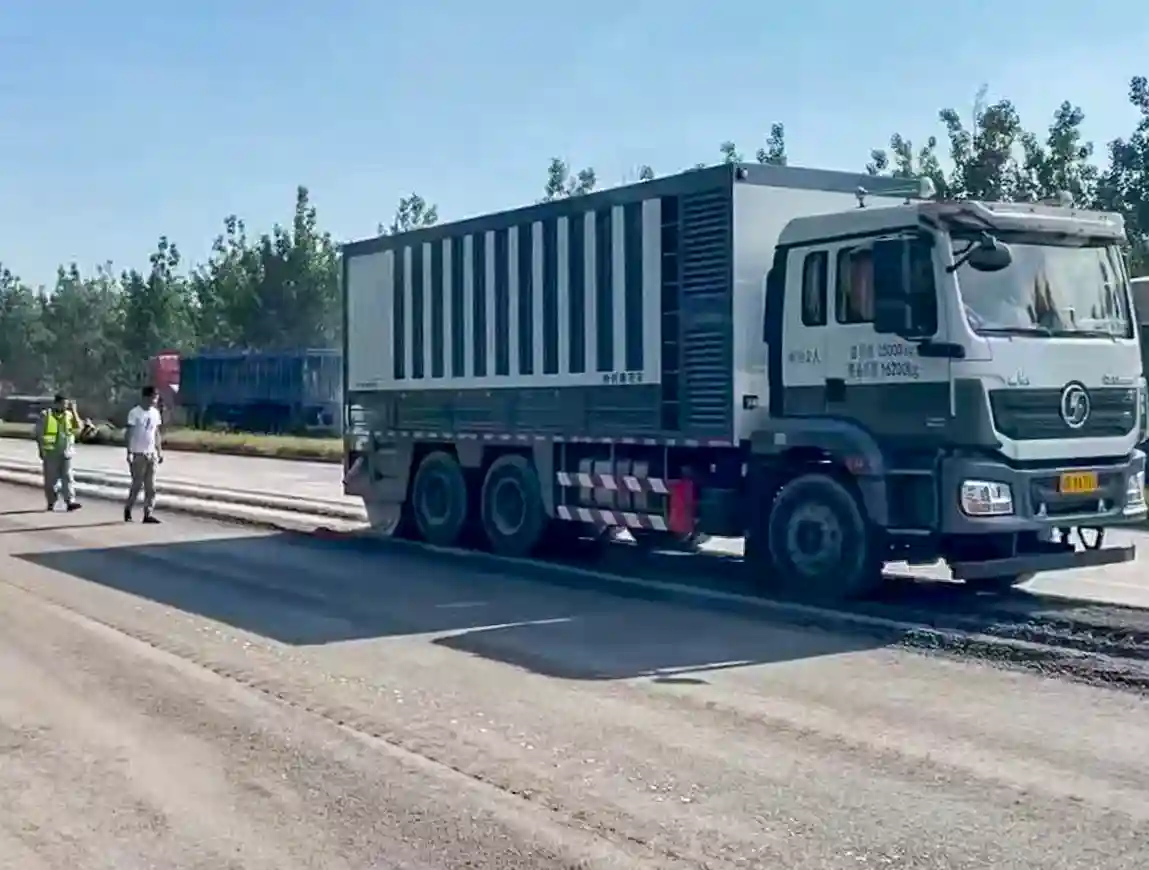

Service & Support Commitments
Global Delivery Support: Covers 100+ countries via freight corridors, offering door-to-door logistics (end-to-end shipment management) and a standard 7-day program guided by senior engineers.
Warranty & Extended Service: 12-month warranty for core systems/components. Includes preventive maintenance, software upgrades, and free wear parts replacement kits during the warranty period.
Rapid Spare Parts Supply: 48-hour global delivery guarantee; remote diagnostics available in 60+ countries.
Smart Remote Support: 24/7 online local service teams in 60+ nations; provides visual repair guidance.

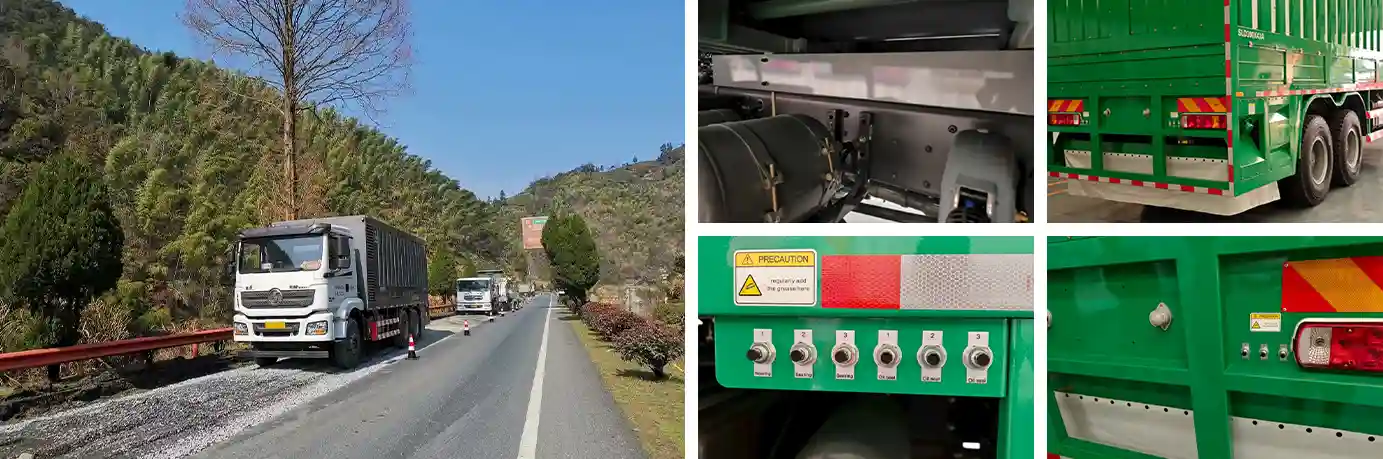

Model and Specifications
The ZZM MT5255TFS Full-automatic Binding Agent Spreader offers dynamic weighing, modular control and eco-friendly binding agent application.
ZZM MT5255TFS Full-automatic Binding Agent Spreader
Model
MT5255TFS
Maximum Total Mass
25000kg
Curb Weight
16000g
Maximum Overall Dimensions
9020×2550×3600mm
Approach/Departure Angle
16/13°
Wheelbase
3975+1400mm
Front Overhang/Rear Overhang
1525/2120mm
Spreading Width
0.6～2.5m (adjustable)
Spreading Weight
1～40㎏/㎡ (adjustable)
Working Speed
30～60m/min
Chassis Engine Power
336Hp
Displacement
8800ml
Maximum Driving Speed
89km/h
Emission standards
Euro Ⅴ
Overall dimensions L × W × H (mm)
8500 x 2500 x 3700
Overall vehicle curb weight (kg)
16500
Maximum total mass (kg)
25000
Axle spacing (mm)
3575+1400
Maximum speed (km/h)
86
Working driving speed (km/h)
3
Rated capacity of hopper (m³)
16
Sweeping width (mm)
2500
Sweeping amount (kg/㎡)
1-50
