Asphalt Tank

China’s Premier Asphalt Transport Tank Manufacturer, Smart Temperature & Durable Tech, Serving Projects Across 60+countries.

23

Large Capacity

10-45m³ High-Quality Asphalt Tank

3

High Thermal Efficiency

Dual Burner Efficient Heating with Heat-Conducting Oil Pipeline Insulation

24

High Performance

Q345B High-Quality Steel Plate, Efficient Asphalt Pumping

Construction Cases

The 10 customized 45m³ asphalt transport tanks built by IKOM for Ghana have passed inspection and been shipped. Featuring a tri-axle chassis for both high load capacity and road adaptability, the tanks incorporate multi-layer thermal insulation and an intelligent temperature control system, maintaining asphalt temperature within ±5℃ to minimize material loss during transit. These tanks will be deployed in road upgrade projects in Ghana’s Western Region.

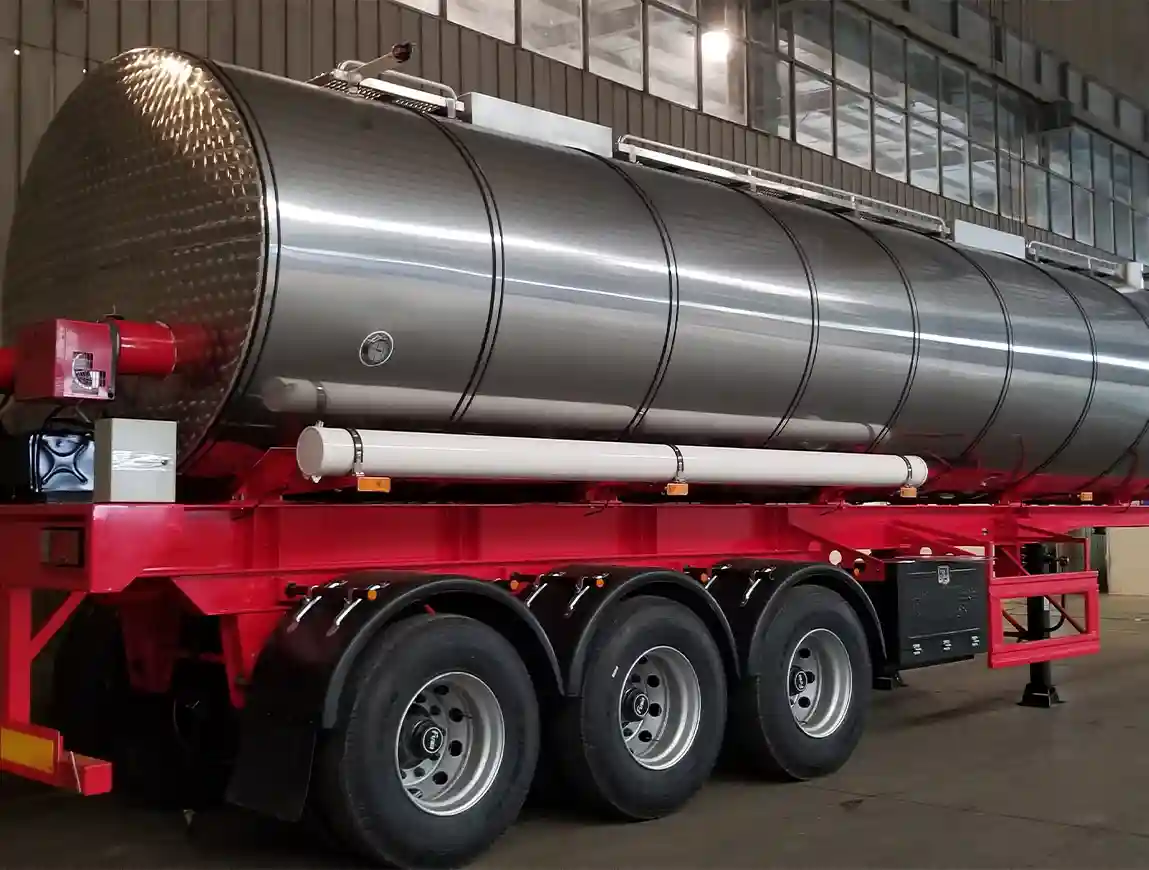

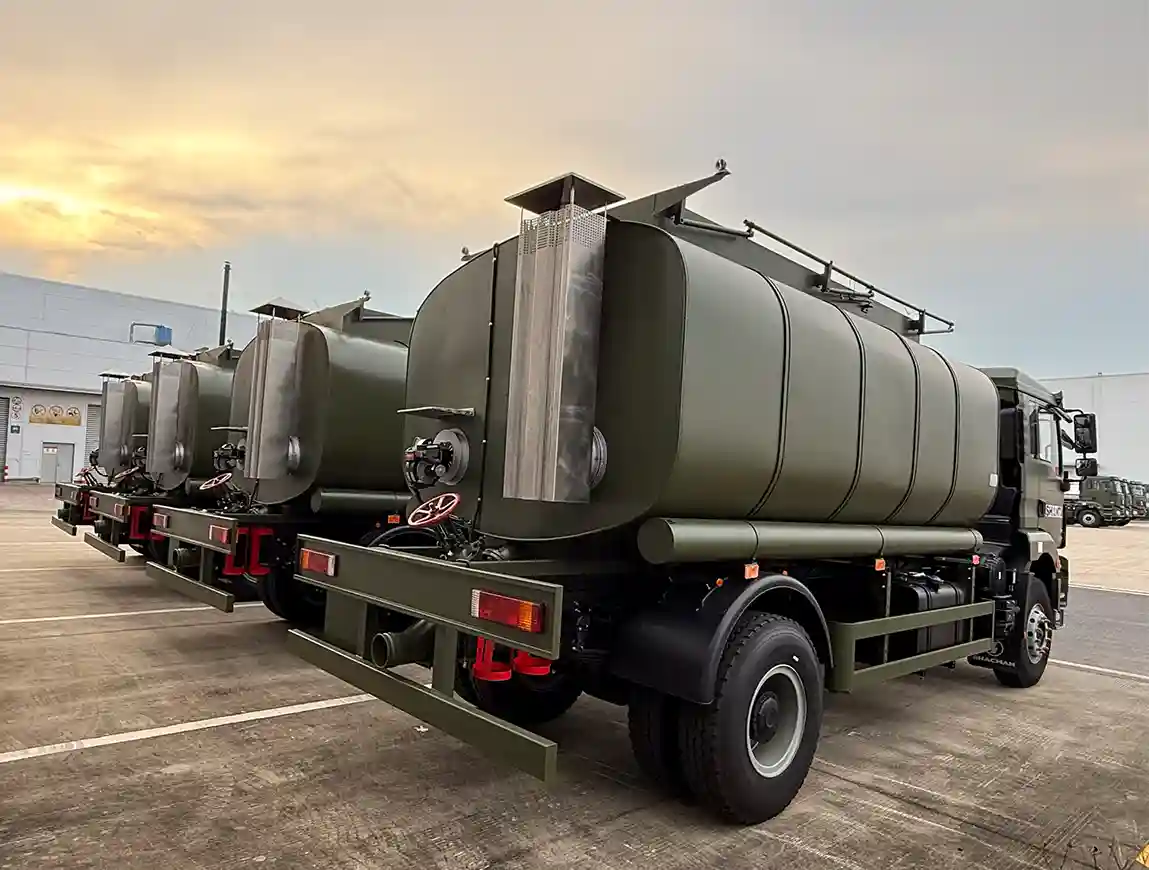

Usage Scenarios

Asphalt Transport Tanks: Designed for long-distance asphalt transfer while preserving quality, typically mounted on truck chassis. Features large capacity (e.g., 45m³) and high-efficiency thermal systems, maintaining precise temperature control (±5℃) to prevent solidification during transit, meeting cross-regional material supply demands for road construction.

Asphalt Heating Tanks: Focused on asphalt storage and melting, primarily in fixed/semi-mobile configurations. Utilizes fuel or electric heating systems to melt solid asphalt into workable fluid state, with sustained thermal maintenance ensuring on-demand readiness for road paving and repairs.

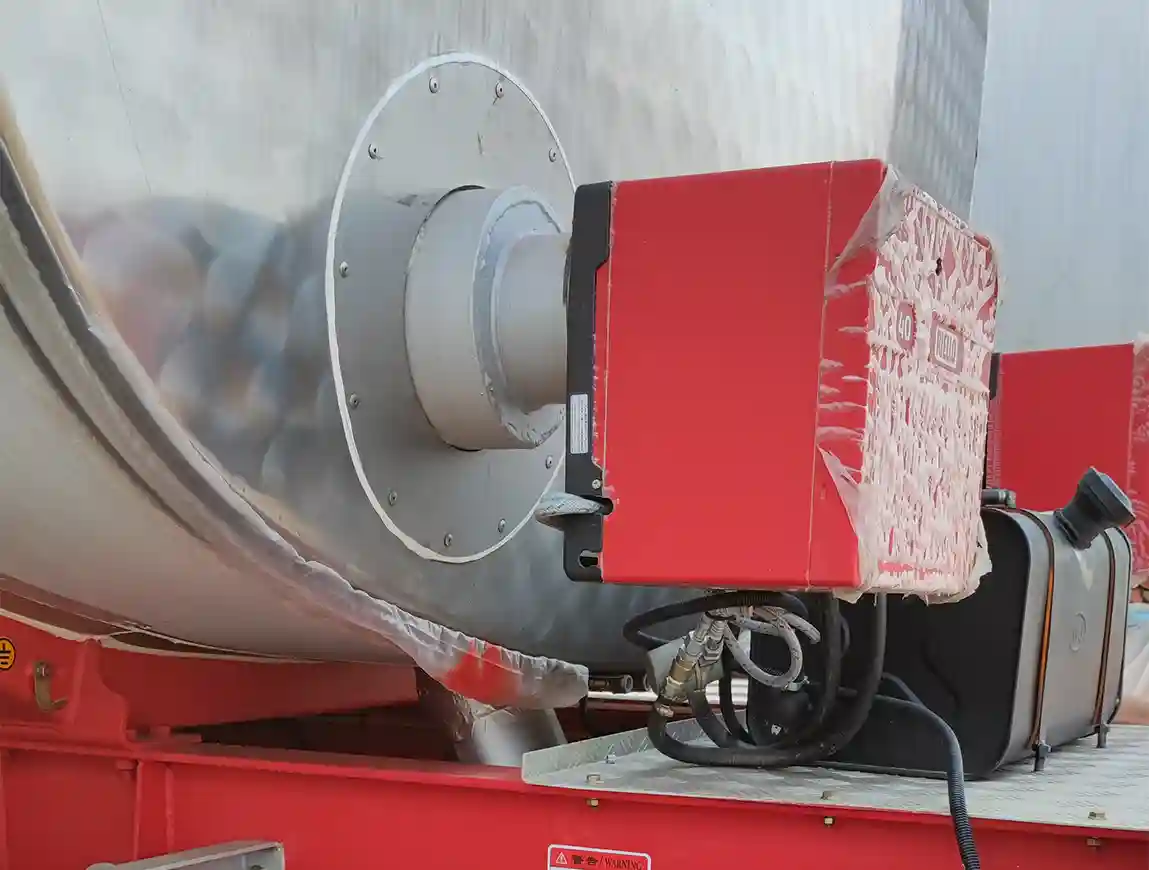

Pump Control Technology

Core Technology:The system features a Quad-Core Configurationfor stable, efficient asphalt transfer. Its high-quality Triple Screw Asphalt Pump offers exceptional wear and high-temperature resistance, ensuring stable pressure and zero leakage during operation at 180-220°C.

Optimized Pipeline System:Includes integrated pipe heating and circulationto prevent cooling, solidification, and clogging, ensuring uninterrupted material flow.

User-Friendly Control:Features a simple button control panelfor quick parameter adjustments, reducing operational complexity.

Diverse Power Options:Supports optional hydraulic or diesel power units, enabling operation at off-grid field sitesand significantly expanding application range.

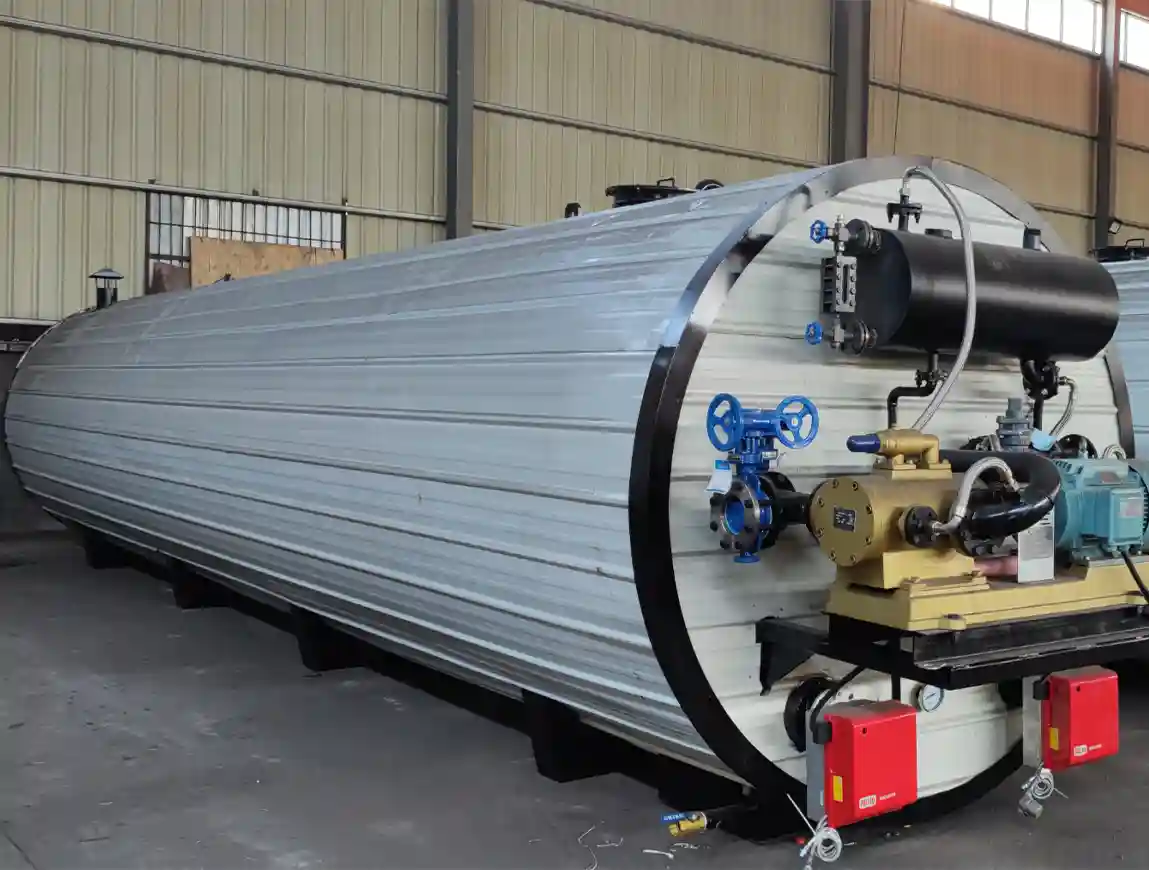

Capacity and Efficiency

Tank Structure: The IKOM asphalt transport tank offers a 45m³ capacity, constructed from 6mm thick Q345B carbon steel for high strength and corrosion resistance. Internal multi-layer baffles effectively dampen asphalt sloshing, enhancing driving safety.

Heating System: Dual-burner heating + precise temp control → rapid heating to working temps. 100mm high-efficiency insulation → maintains temp stability + reduces heat loss.

Chassis & Reliability: Equipped with high-quality axles and durable tires for superior load-bearing capacity and wear resistance. Designed to handle long-distance transport on complex road conditions, ensuring trouble-free operation throughout the journey.

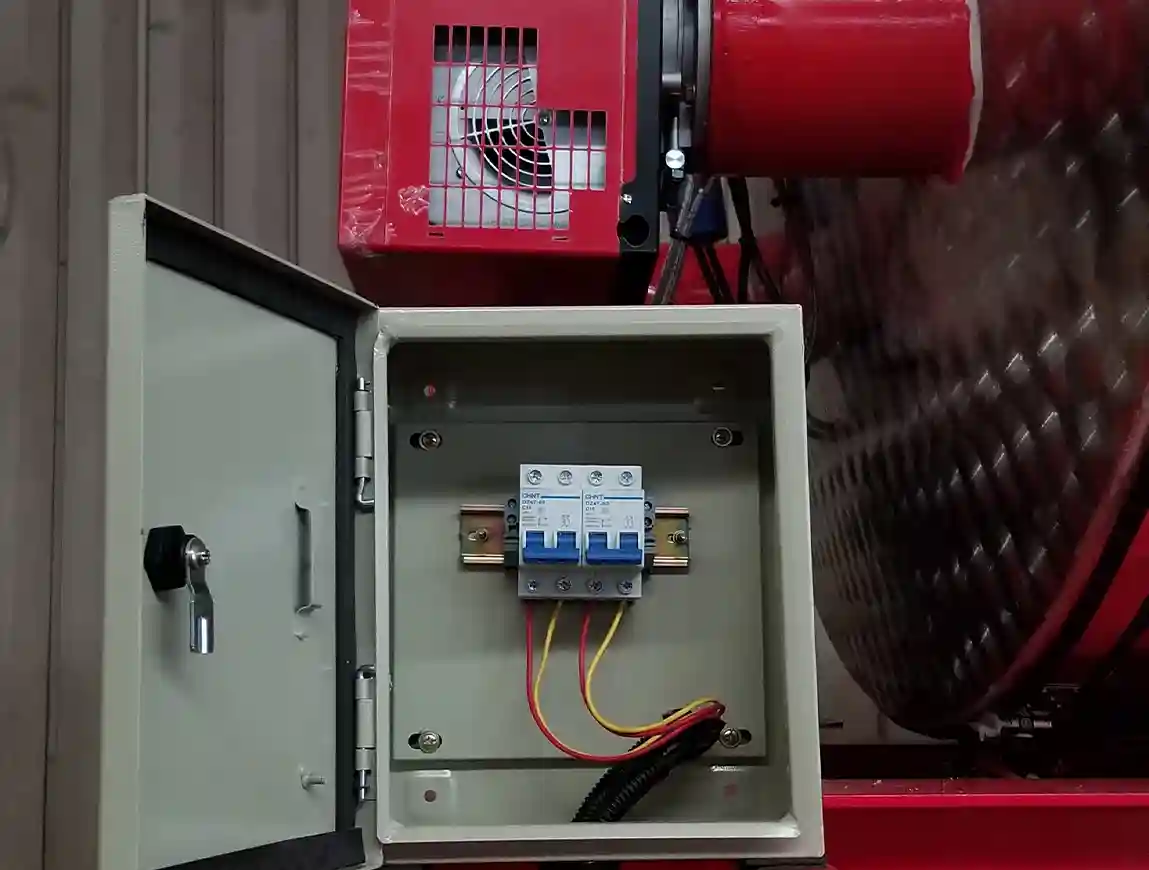

Safety & Environmental Protection

Safety Design: Internal multi-layer baffles suppress asphalt sloshing, reducing rollover risk. The dual-burner system features overheat alarms + flameout protection + real-time temperature monitoring, preventing high-temperature hazards and ensuring stable transport.

Eco-Friendly Features: Low-emission burner minimizes exhaust gases. Heavy-duty insulation reduces heat loss → lowers fuel consumption & carbon emissions. Superior tank sealing prevents asphalt leaks, avoiding soil/road contamination. Balances transport efficiency with environmental protection, meeting modern green construction demands.

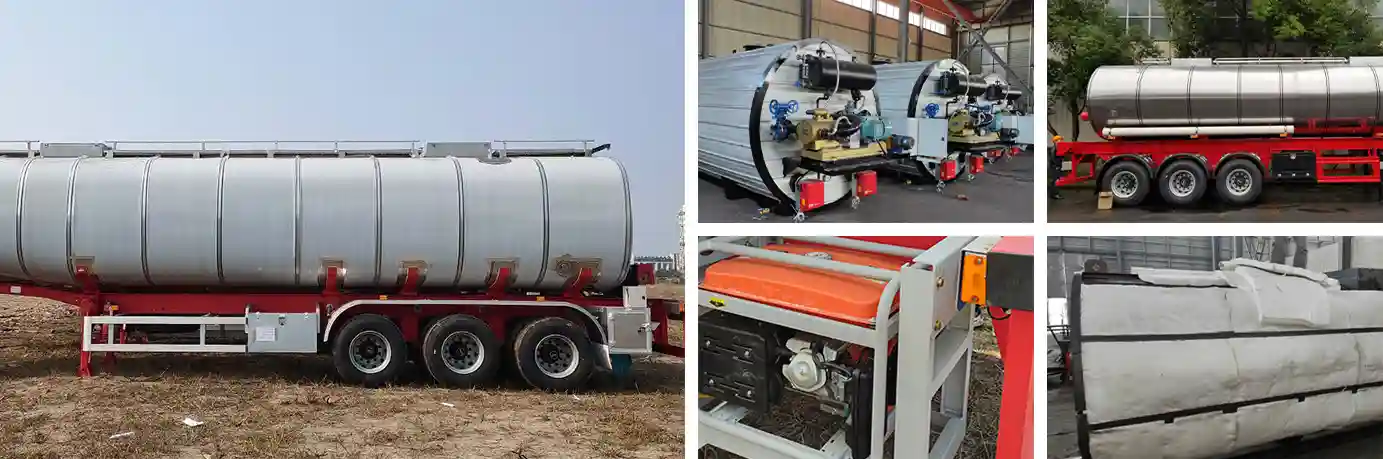

Model and Specifications

IKOM Asphalt Tank are divided into two types due to their different dimensions.

Model

ZZM9300GLB

Overall Length

10,990mm

Overall width

2,500mm

Overall height

3,800mm

Front Overhang

1,450mm

Wheelbase

6,000+1,310+1,310mm

Tractor plate height

1,320mm

Axle

FUWA axle 13T, 3 pieces

Rims

9.0-22.5, 13pcs

Curb weight

11,800kg approx

Rated load

45,000kg

Total mass

65,800kg approx

Towing pin load

25,800kg approx

Axle load

40,000kg approx

Total volume

30m³

Tank

material carbon steel Q345B, t=5mm

Head

material carbon steel Q345B, t=6mm

Anti-wave plate

material carbon steel Q235B, t=5mm

Model

ZZM9450GLB

Overall Length

12,770mm

Overall width

2,550mm

Overall height

 3,850mm

Front Overhang

1,450mm

Wheelbase

6,800+1,310+1,310mm

Tractor plate height

1,320mm

Axle

FUWA axle 13T, 3 pieces

Curb weight

11,800kg approx

Rated load

45,000kg

Total mass

65,800kg approx

Towing pin load

25,800kg approx

Axle load

40,000kg approx

Tank parameters

Total volume

45m³

Tank

material carbon steel Q345B, t=5mm

Head

material carbon steel Q345B, t=6mm

Anti-wave plate

material carbon steel Q235B, t=5mm

Get Instant Quote & Info

IKOM is a professional company in producing asphalt and road construction equipment,adhering to the principle of providing customers with the best quality products. Fill out our quote form and we’ll reply to your message within 24 hours!I’m coming for your road.
