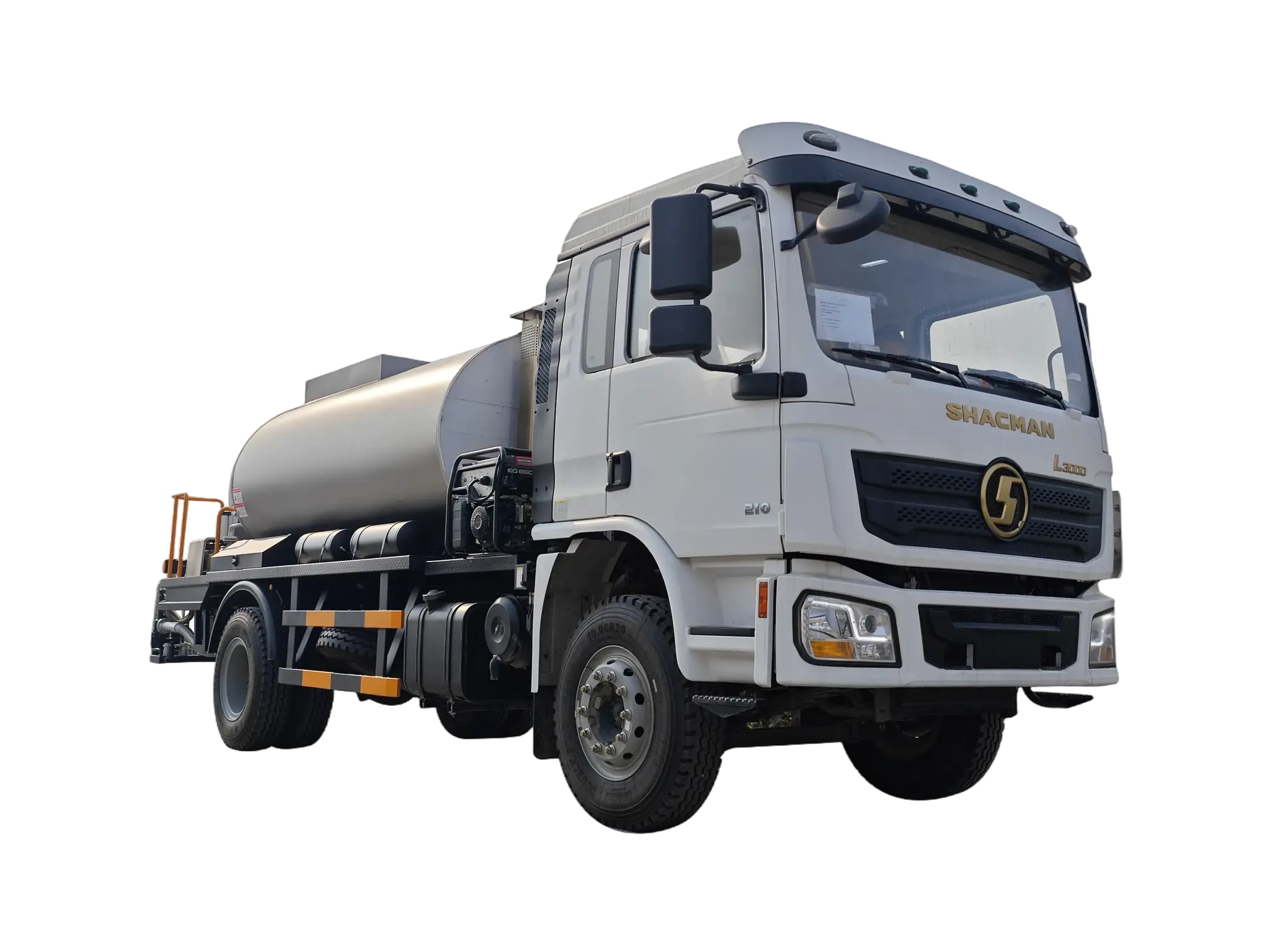

asphalt distributor
China’s No.1 Asphalt Distributor Exporter, Innovation-Driven Technology, Serving 500+ Construction Sites Globally.
Precision Spraying
smart hydraulic servo system, ±1.5% accuracy
Intelligent Interaction

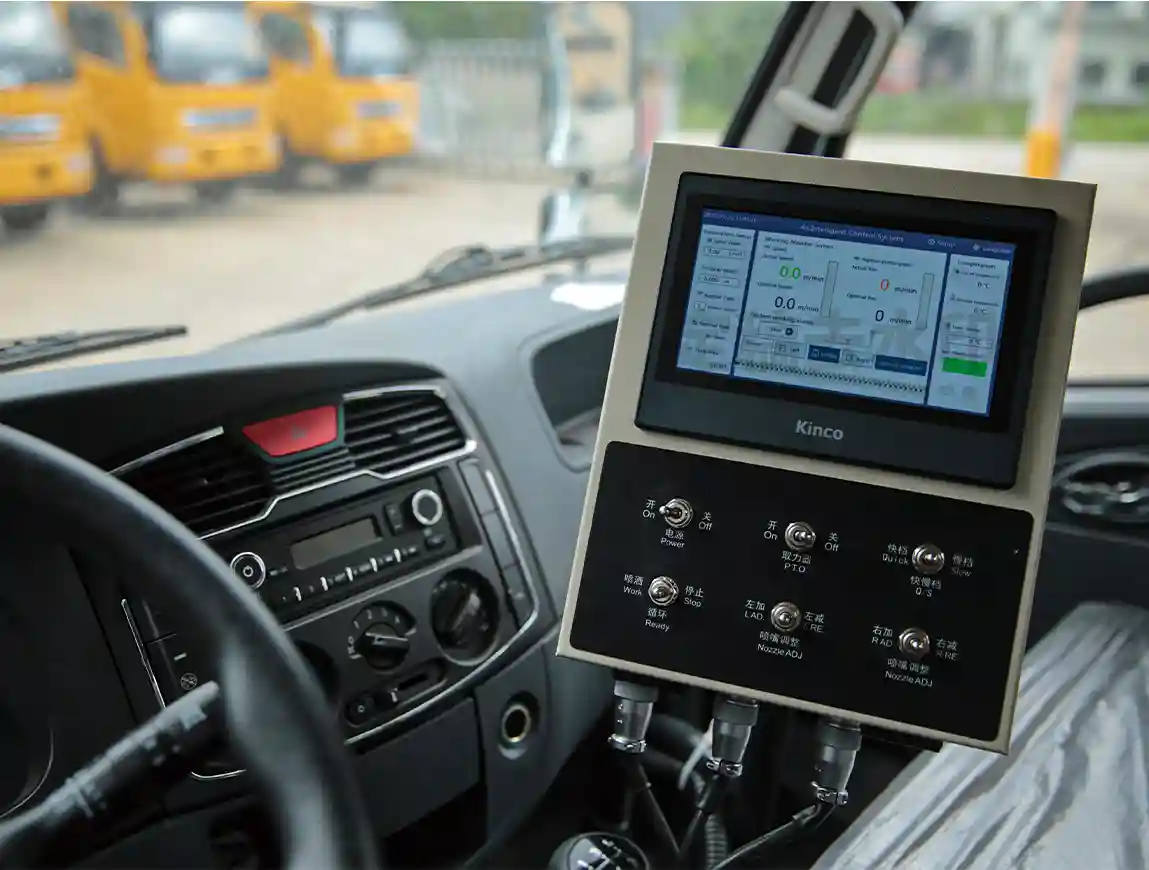

10.1 inch touchscreen with Siemens PLC
Efficient Heating
three-loop heat transfer oil circulation with Italy burner
Construction Cases
Fiji employs asphalt distributor trucks in tack coat construction, using hot asphalt heated to 180℃. With intelligent spraying control, the process evenly bonds pavement layers. The precise temperature and smart tech ensure excellent adhesion, boosting road durability and marking a high – quality infrastructure upgrade.This intelligent model is suitable for high-viscosity modified asphalt and emulsion and can improve the performance to reach the international advanced standard.

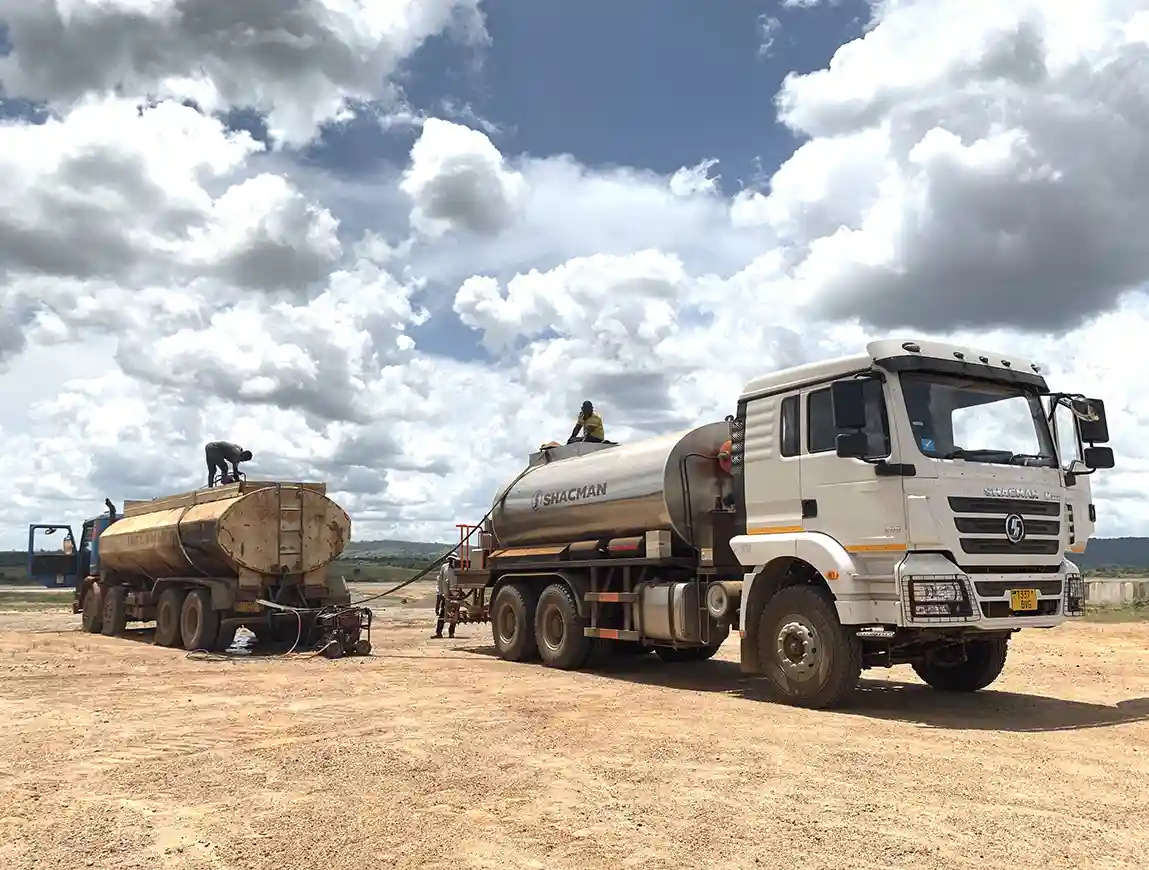

Usage Scenarios
Prime Coat Construction: Spray emulsified asphalt or diluted asphalt to enhance the bonding between the base layer and the surface layer.
Asphalt Tack Coat : Suitable for high-viscosity modified asphalt or SBS modified asphalt, ensuring durability for high-grade highways.
Surface Sealing: Apply hot asphalt or rubber asphalt to improve skid resistance and waterproofing performance.
Special Scenarios: Handheld spray guns can handle edge and corner areas, making them ideal for precision work such as airport runways and parking lots.

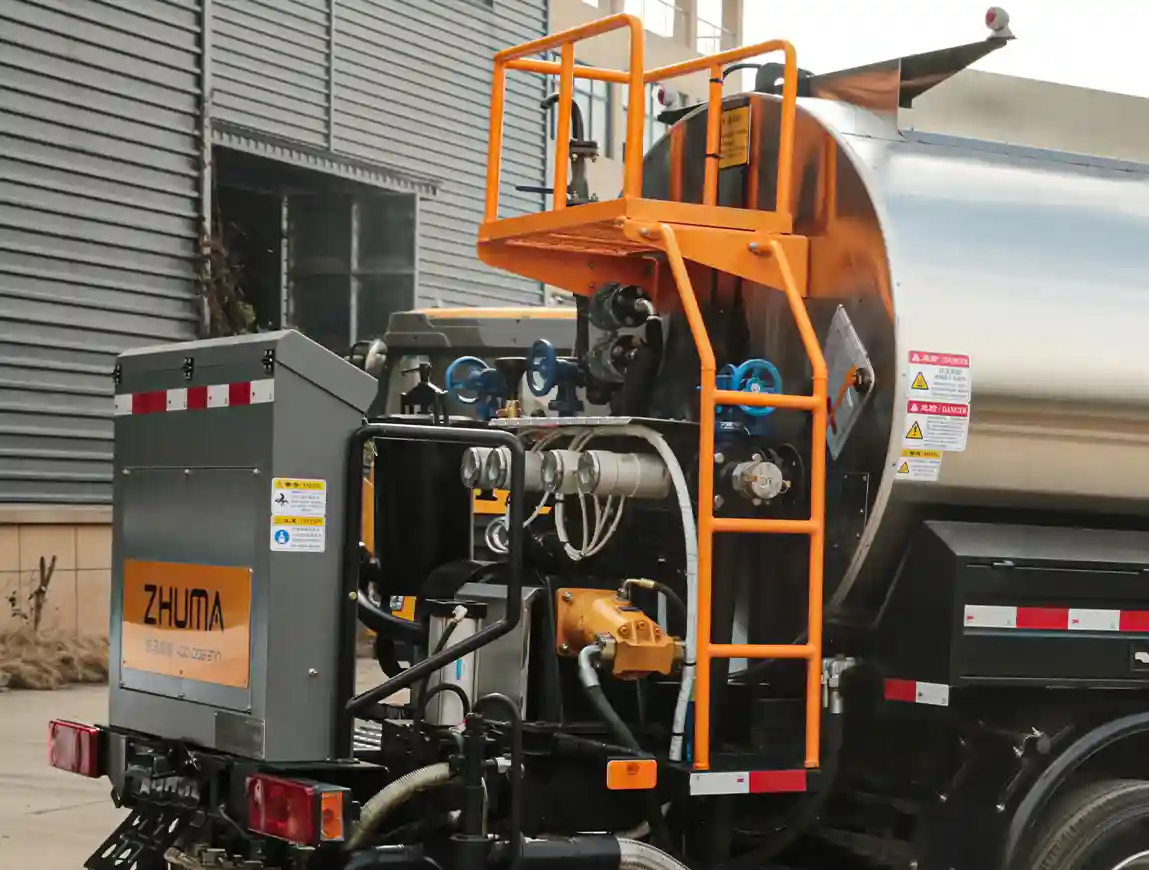

Spraying & Control System
Chassis: Heavy-duty (e.g., Dongfeng/Howo) with high-power engines for tough conditions.
Precision Spraying: QGB950/imported pump, adjustable spray rate (0.2–3.0 L/m²), nozzle control.
Efficient Heating: Italian burners with thermal oil circulation, heating at 10–15°C/h, heat loss ≤12°C/8h.
Smart Automation: Operate via cab touchscreen or rear panel, with real-time speed/RPM tracking , Auto-spray adjusts pump speed for uniformity; real-time data monitoring (temp, speed).
Capacity and Efficiency

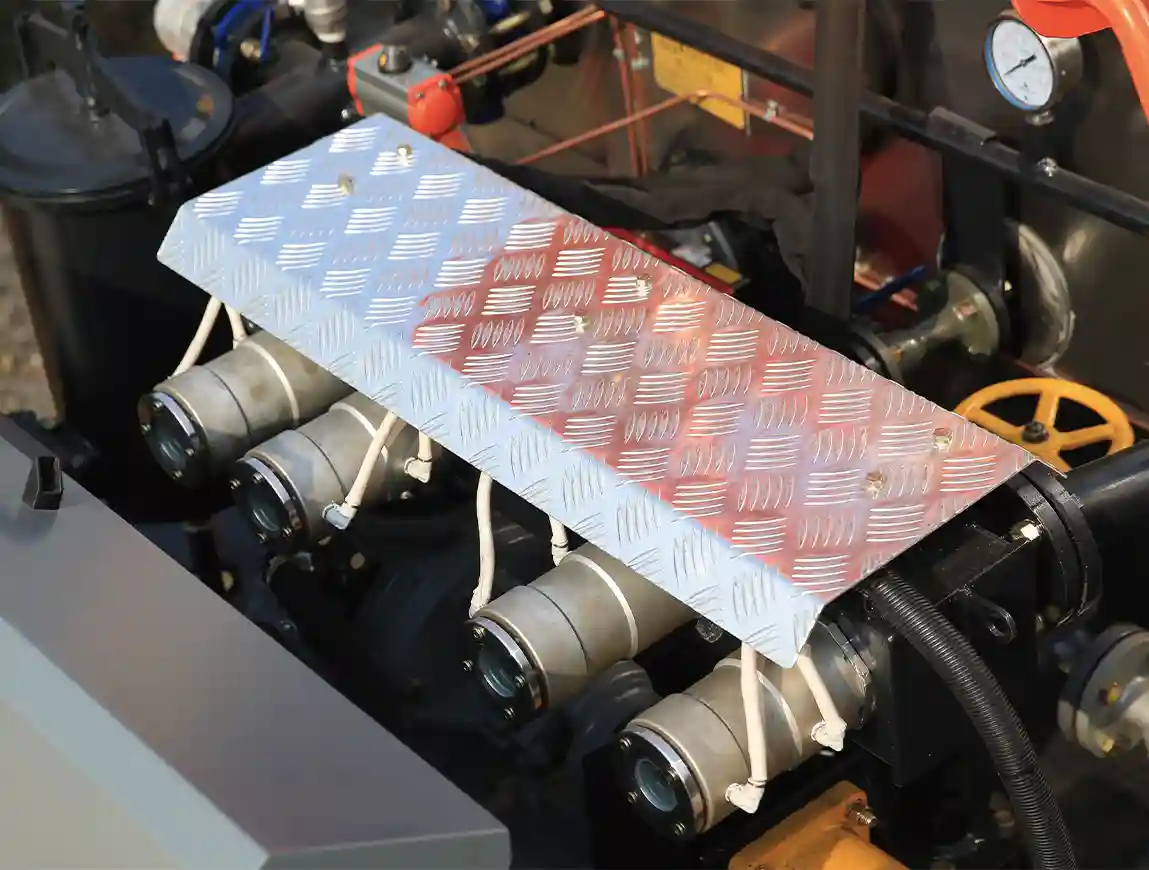

Intelligent valve control: The multi-channel intelligent valve control system realizes the full automation of spraying, pumping in and out, and cleaning.
Large-Scale Operations: Tank capacity of 8–12 m³ allows for extensive coverage in a single load, reducing the frequency of refills.
Rapid Construction: Working speed ranges from 1.5 to 7 km/h, with a spraying accuracy of ±1.5%, increasing daily construction efficiency by 30%.
Low-Maintenance Design: High-pressure air and diesel dual-cleaning system prevents nozzle clogging; key components use international brands, extending lifespan by 50%.
Intelligent Control Technology
Automated Spraying: Imported control system automatically adjusts the asphalt pump speed based on vehicle speed and spraying volume to ensure uniformity.
Data Monitoring: Built-in temperature and speed sensors provide real-time feedback on construction data and generate optimization suggestions.
Remote Support: Optional IoT module enables fault diagnosis and remote technical guidance.
Service & Support Commitments
Parts Availability: 10-year spare parts guarantee – Long-term supply assurance for uninterrupted operation.
Rapid Service Response: 4H emergency response (business days) for urgent issues, 8H professional diagnosis with actionable repair plans, 48H parts delivery for efficient repairs., 3-days full resolution on complaints to ensure closure.
Global Service Network : Serving 60+ countries with mature global service experience, achieving 98% customer satisfaction—proven by recognition.
Model and Specifications
Asphalt distributors are classified into intelligent asphalt distributor, standard asphalt distributor, and trailer asphalt distributor.

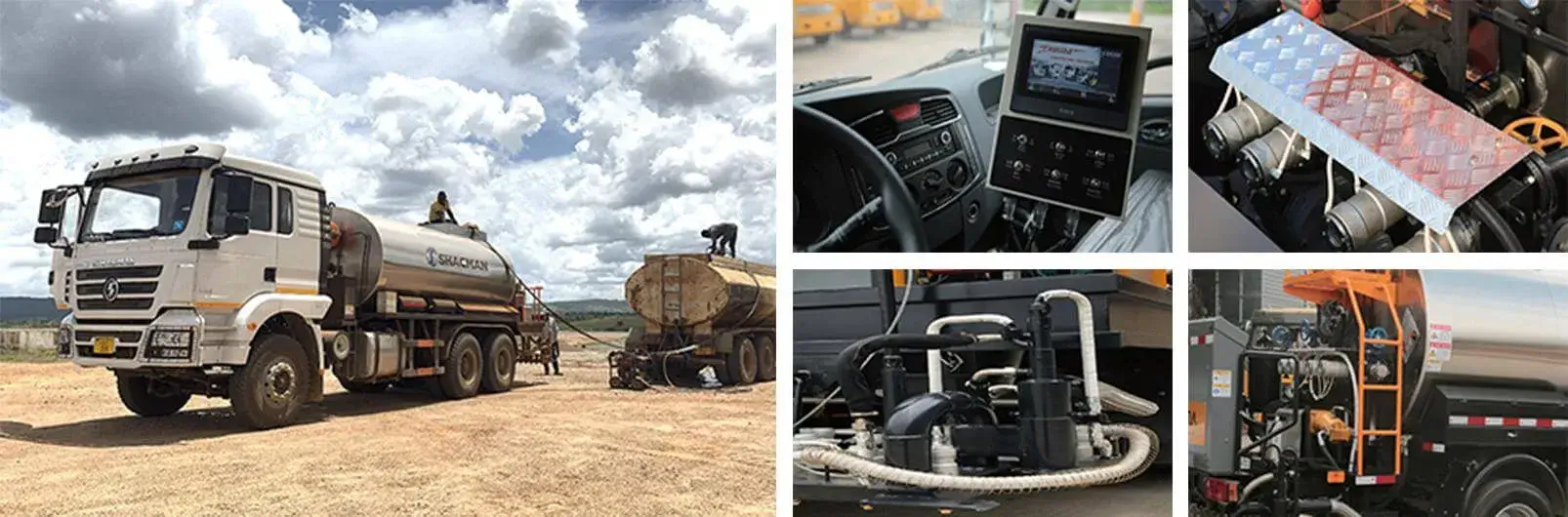

Intelligent asphalt distributor
Model
ZZM5090GLQ / ZZM5162GLQ / ZZM5252GLQ
Tank capacity
5000L / 8000L / 12000L
Alternative chassis
DONGFENG / HOWO / SHACMAN
Spray width(mm)
4500/6000
Asphalt spray rate (L/m2)
0.25-3.0
Burner
RIELLO
Heating transfer oil Tube
Transfer the heating in tank, asphalt pump and spray bar
PLC
Siemens
Nozzles control
Each pneumatic cylinder control by solenoid valve
Hydraulic pump
CBQ / G550 / G563 / CFH
Asphalt pump
QGB450

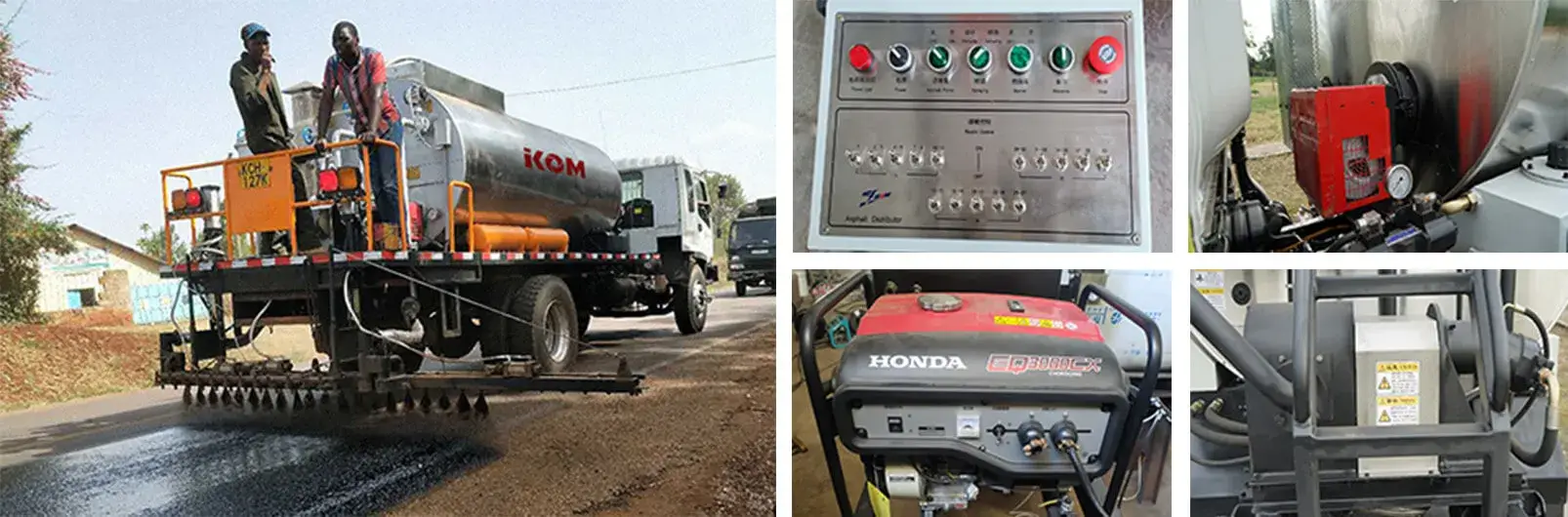

Standard asphalt distributor
Model
ZZM5250GLQP / ZZM5160GLQP / ZZM5090GLQP / ZZM5060GLQP
Tank capacity
12000L / 8000L / 5000L / 3000L
Chassis model
DONGFENG / HOWO / SINOTRUCK
Spray width(mm)
6000 / 4500 / 4500
Asphalt spray rate (L/m2)
0.3-3.0
Heating system Generator
HONDA 2500 2KW
Burner
RIELLO
Control system
Integrated button control panel
Hydraulic pump
CBQ / G563 / CFH / G550Q / G550
Asphalt pump
QGB450 / CB550 / CB450 / CB300
Hand Spray
5m Hand spray lance
Suction
4m Suction pipe

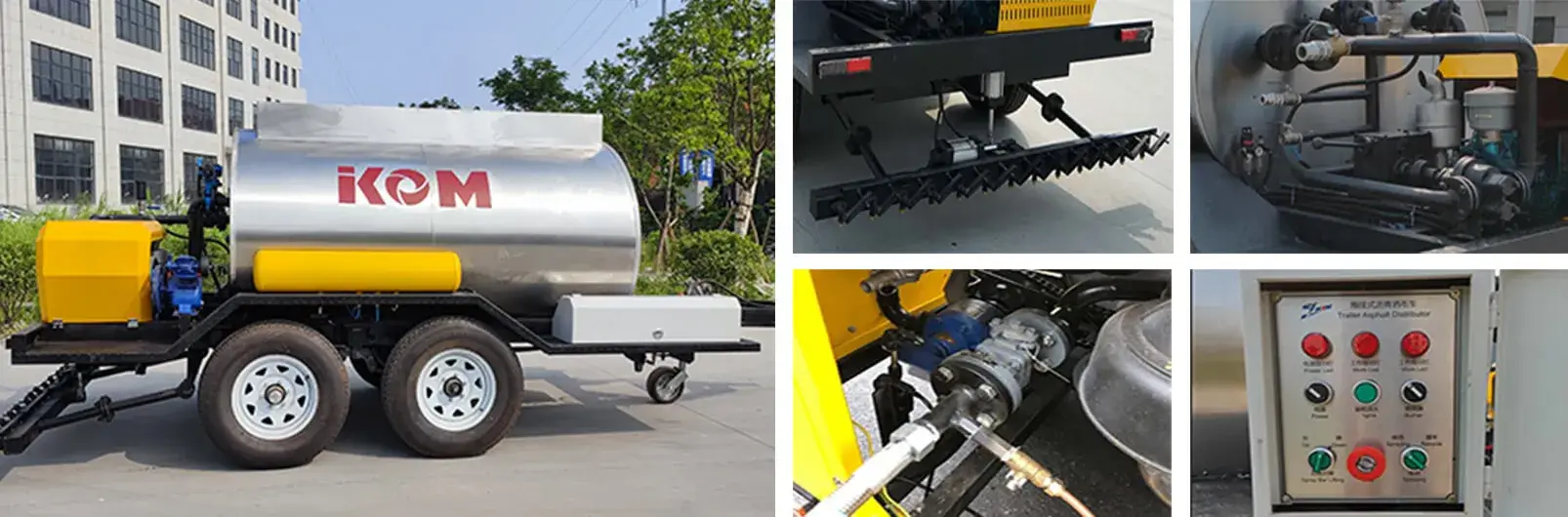

Trailer asphalt distribuor
Model
ZM-4SPSZ / ZM-8SPSZ
Tank capacity(L)
1000 / 2000 / 2500
Drawbar Length(mm)
1000
Axis
1
Spray bar length(m)
2
Spray bar nozzles
fan-shaped, 13pcs
Hang Spray Rod Length (m)
5
Engine model
HONDA GX270 6kw / Yuchai 195F 11kw / Changchai ZS1100 12.1kw
Burner
PQ-5 / G10
Asphalt pump flow(m³/h)
3 m³/h / 6 m³/h
