Airport Sweeper

MAX60, the fatest road sweeper in the world

19

60 km/h

World's fastest continuous operating speed for sweepers.

2-1

High Efficiency

German-engineered blower and high-efficiency suction nozzle achieve over 90% cleaning rate.

2

Human-Machine Interaction

Fully PLC-controlled system enables one-touch operation.

20

Working Distance

Enlarged fuel tank, debris hopper, and water tank allow for single-trip cleaning up to 150 km.

21

Low Maintenance

Key components utilize world-renowned brands for minimal downtime.

22

Enhanced Safety

Comprehensive monitoring system with early warning alerts; optional anti-collision package available.

Construction Cases

At Shanghai Pudong Airport, the IKOM MAX60 sweeper cleans the apron and surrounding roads. With a sweeping speed exceeding 60 km/h, it boosts efficiency and minimizes traffic disruption.
It features a central four-sweeping-disc and rear suction nozzle design. The discs adjust speed (high, medium, low) for different surfaces (apron, taxiways, runway roads), ensuring thorough cleaning and debris removal. A large 12 m³ garbage bin and 3.5 m³ water tank support extended operation, reducing resupply stops.
Rear directional arrow lights and top warning lights operate during sweeping to alert passing traffic and ground equipment, ensuring safety by prompting them to yield.

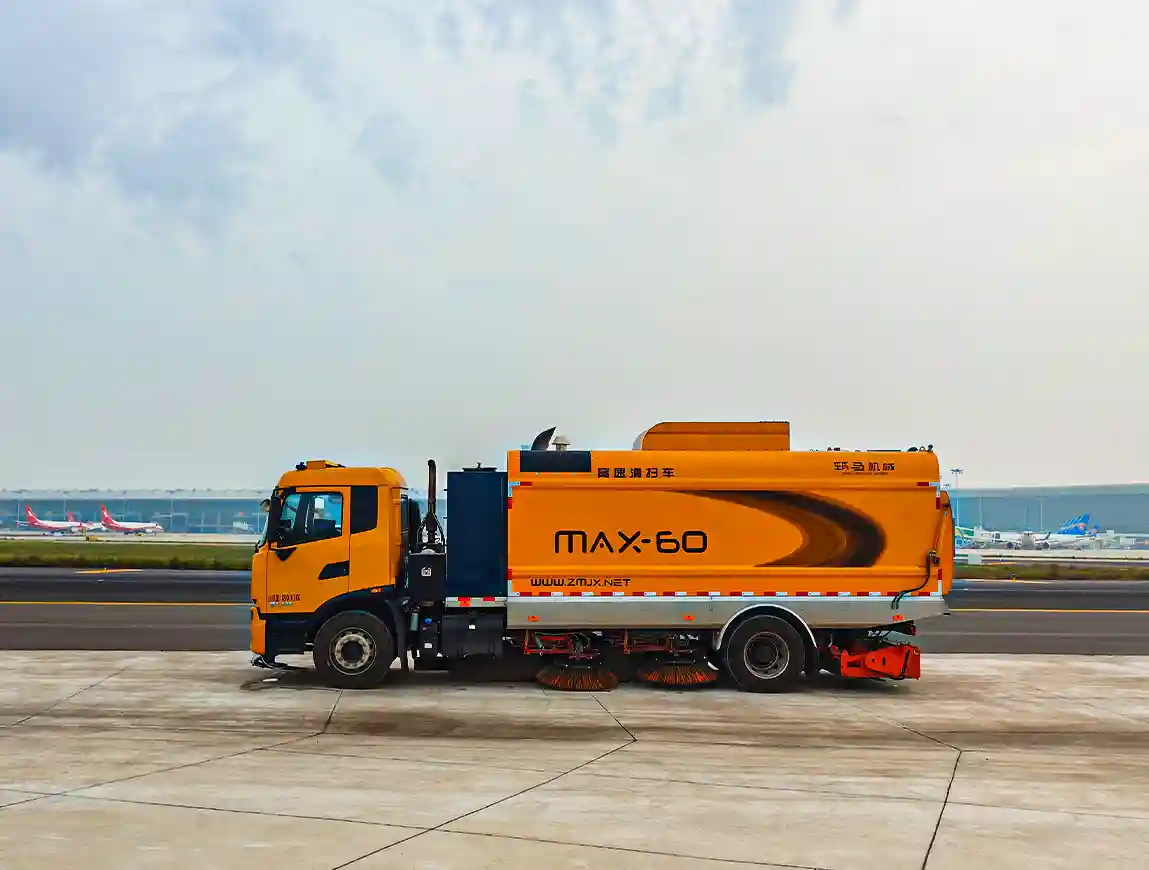

Usage Scenarios

Airport: Extreme cleanliness required. High-speed sweepers remove debris/FOD to prevent hazards. Focus: dust suppression, rapid wide-area coverage, collision avoidance, and efficiency during flight intervals.

Highways: Sweepers operate in emergency lanes at ~60km/h to clear debris with minimal traffic disruption. Large bins enable long range; warning systems ensure safety in dense traffic.

Urban Expressways: Primarily overnight operation. Adaptable for complex interchanges, efficiently cleaning curbsides. Crucial: noise and dust control to minimize morning rush hour impact.

Special Scenarios: Confined spaces, limited time, varied pollutants, high traffic. Solutions prioritize speed, dust suppression, and safety.

Intelligent Control Technology

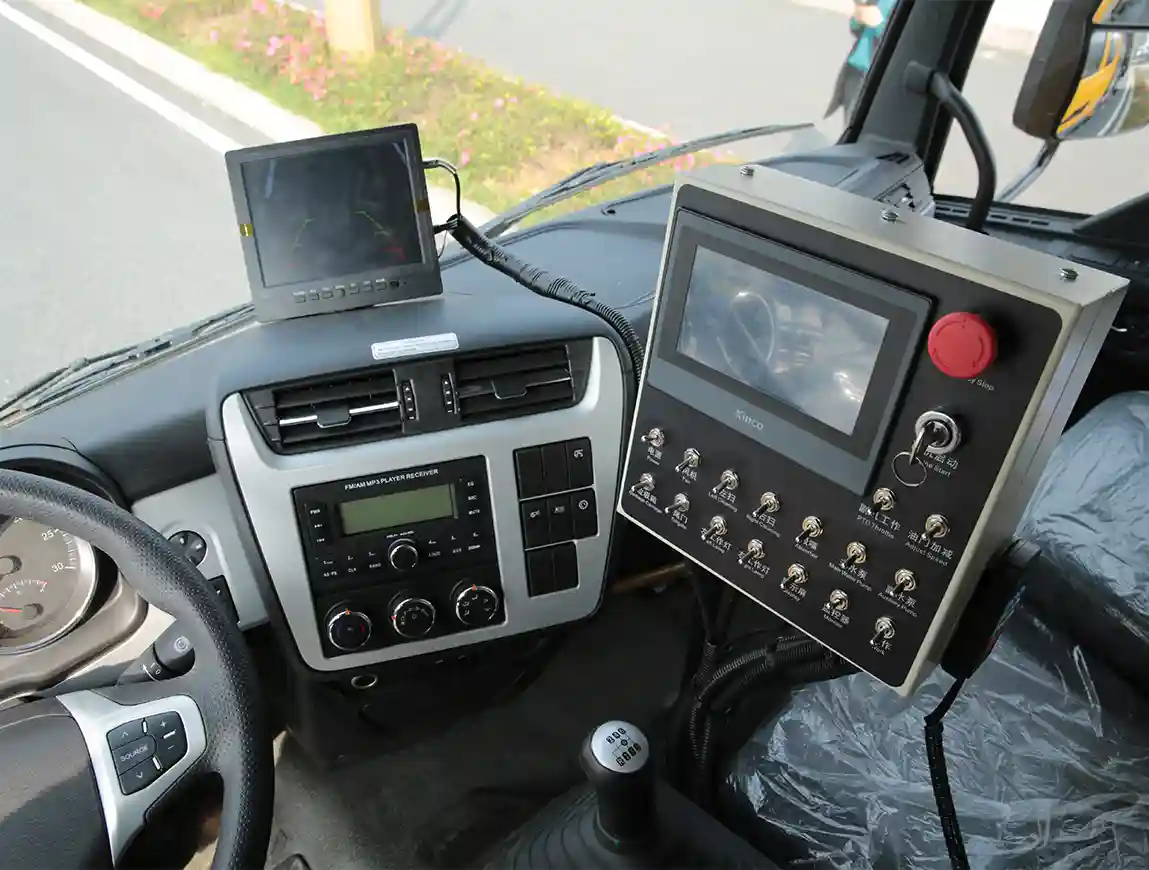

Intelligent Control: Features a 7-inch color touchscreen enabling “one-touch” operation, displaying key parameters like sweeping width and speed in real-time for intuitive control.

Automatic Adjustment: Automated systems intelligently regulate brush angle and pressure, enabling unmanned autonomous operation and minimizing human error.

High-Efficiency Cleaning: Optimized air duct design creates directional airflow, powerfully capturing dust, debris, and hard-to-reach curbside gaps. Maintains strong suction at high speeds, boosting cleaning efficiency over 30% while balancing speed and thoroughness.

Capacity and Efficiency

Dust Collection Method: Utilizes combined suction-sweeping with wet dust suppression. Driven by an imported German closed-circuit, self-adaptive continuously variable hydraulic system powering a high-efficiency centrifugal fan with up to 78% efficiency.

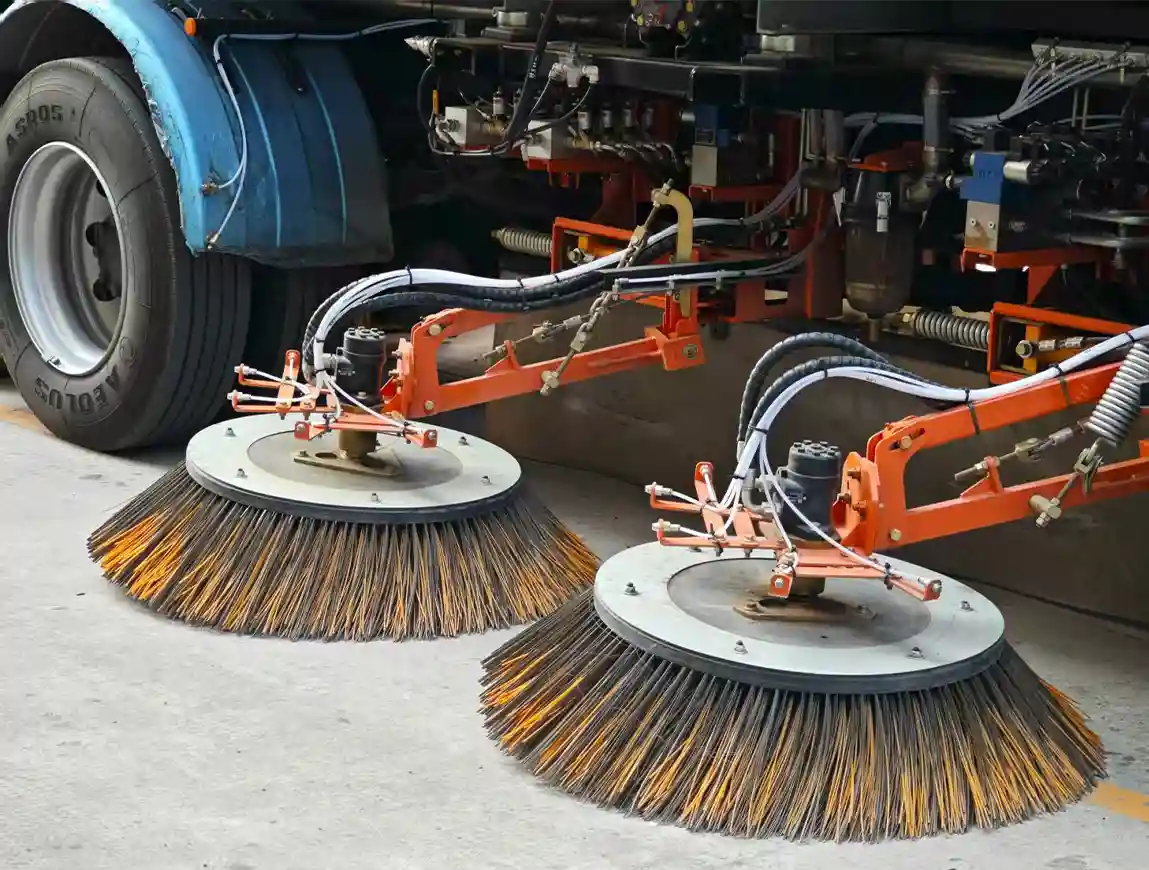

Sweeping Coverage Design: Features a centrally mounted quadruple broom assembly combined with a rear suction nozzle and an internal transverse roller brush layout, achieving full coverage across a 3800mm sweeping width. The suction nozzle employs a triple-inlet design with a width of 2300mm.

Dual Power System: Employs a dual power system. The chassis-mounted power take-off (PTO) provides hydraulic power for hopper tipping/dumping and suction nozzle lifting operations.

Safety & Environmental Protection

Auto-Obstacle Avoidance & Reset: The side-sweeping device features automatic obstacle avoidance and reset, with selectable high, medium, or low operational speeds.

Effective Pipe Cleaning & Freeze Protection: Equipped with a powerful pipe-cleaning and anti-freezing system to prevent water circuit damage from frozen to prevent water circuit damage from frozen pipe accumulations.

Dual-Water-Circuit Dust Suppression: A dual water circuit system effectively reduces dust dispersion during high-speed operation.

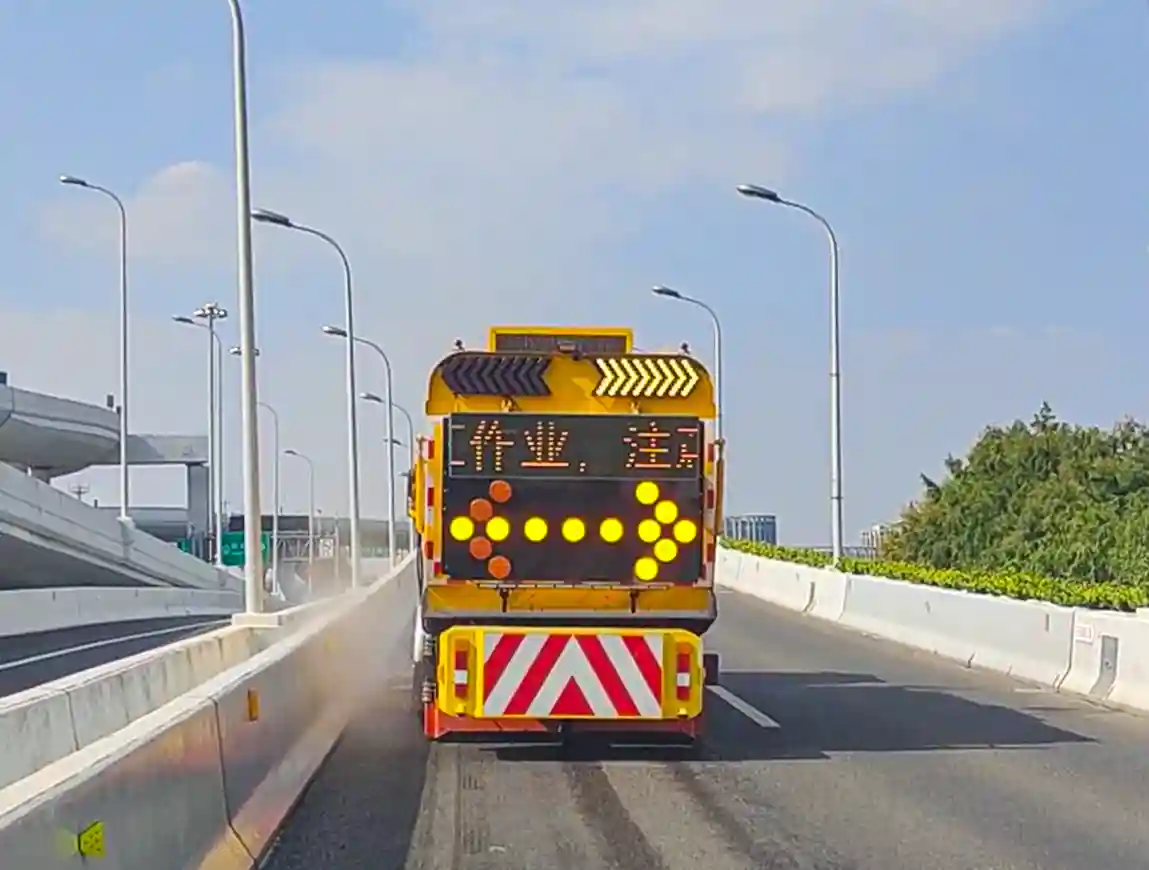

Enhanced Safety Monitoring: Features a rear strobe directional arrow indicator with audible/visual alerts. The vehicle includes left, right, and rear monitoring cameras. An anti-collision package is optionally available.

Service & Support Commitments

Warranty & Parts: 2-year full machine warranty. 10-year parts supply with 98% wear parts stock coverage, 48-hour shipment for urgent orders.

Service Commitment: Domestic technical response within 4 business hours; International support in English/Russian/Arabic, overseas solutions within 72 hours.

Proven Global Quality: Equipment exported to 60+ countries, accumulated construction area exceeding 6 million m², CE certified, 80% customer repurchase rate.

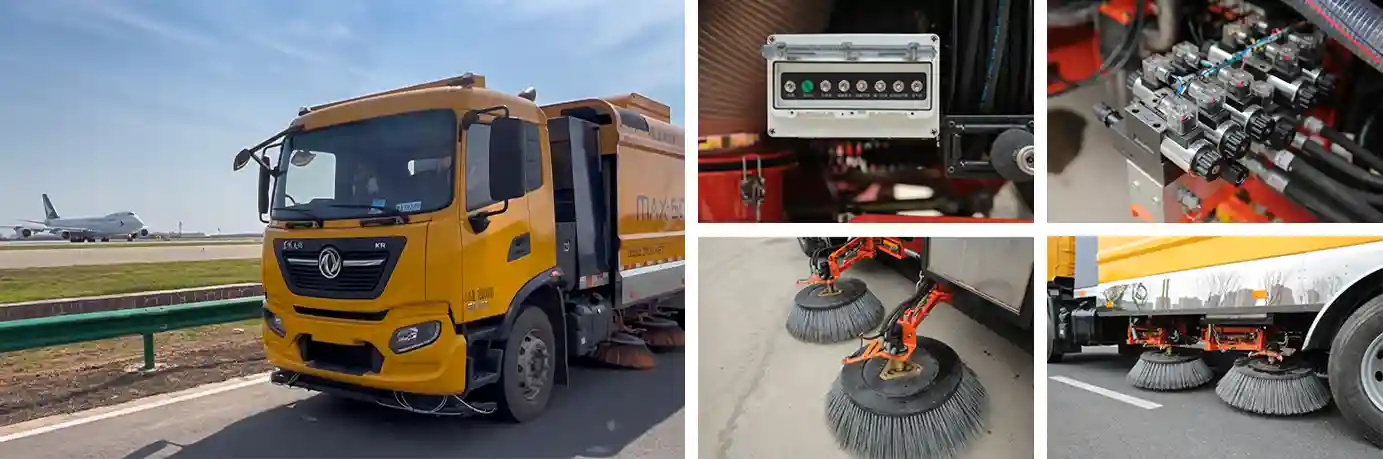

Model and Specifications

MAXA60 High-speed runway sweeper is a fast cleaning vehicle developed by IKOM Machinery for highways, expressways and airports.

ZZM5180TSL-MAX60 High-speed runway sweeper

Model

ZZM5180TSL

Dimension

9200×2500×3650mm

GVW

18000kg

Kerb Mass

12805kg

Loading Weight

5000kg

Chassi Model

DFL1180BW(Euro III)

Chaiss Engine mode

B190.33

Engine power

190HP

Wheelbase

5300mm

Max. Speed

89km/h

Auxiliary engine

QSB6.7-C260(Euro 3)

Effective volume of trash bin

5m³

Front +Rear capacity

(2.5+1)m³

Max. sweep width

3800mm

Fan Drive

Variable speed hydraulic motor

Sweep disc

 2+2

Nozzle bar width

2300mm

Nozzles quantity

3

Nozzles diameter

220mm

Working speed

5–60+(Km/h)

Sweep efficiency

≥92%

Maximum cleaning capacity

228000㎡/h

LCD

7 inches

Operation mode

Touch screen + physical switch
